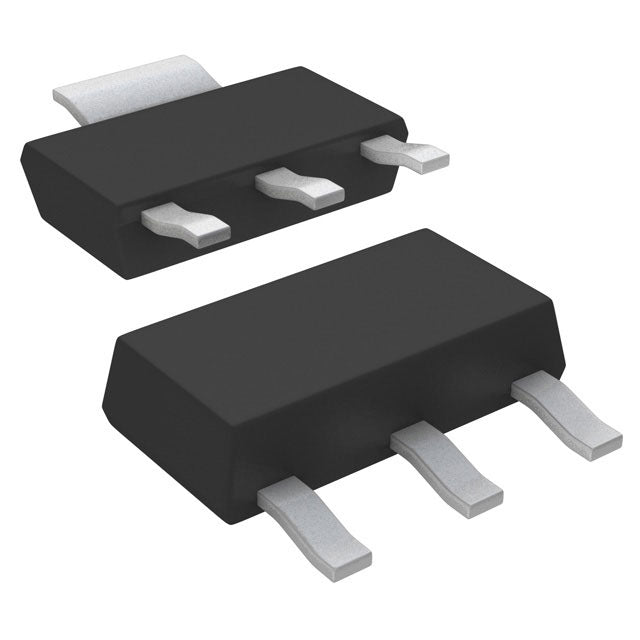

Microchip Technology MIC5209-3.6YS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.62 | $1.62 |
| 15+ | $1.56 | $23.40 |
| 25+ | $1.53 | $38.25 |
| 50+ | $1.45 | $72.50 |
| 100+ | $1.28 | $128.00 |
| N+ | $0.26 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 3.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 170 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| ROHS |  |
The MIC5209-3.6YS from Microchip Technology is a fixed 3.6V LDO regulator delivering 500mA. With a quiescent current of just 170 µA and a dropout voltage of 0.6V at full load, it is optimized for battery-operated devices. The SOT-223-3 package offers a compact footprint. Its 75dB PSRR at 120Hz ensures clean power for analog and RF circuits.
- Ultra-Low Quiescent Current: 170 µA extends battery life in always-on applications.
- Low Dropout: 0.6V at 500mA allows operation from nearly depleted batteries.
- High PSRR: 75dB at 120Hz filters mains ripple effectively.
- Compact SOT-223-3: Saves board space in space-constrained designs.
Battery-Powered IoT Sensors
The 170 µA quiescent current extends battery life in wireless sensors, while the 3.6V output suits low-power microcontrollers and RF transceivers.
Portable Medical Devices
With 75dB PSRR at 120Hz, this LDO ensures clean power for glucose monitors and pulse oximeters, reducing noise-induced measurement errors.
Handheld GPS Modules
The 500mA capacity and low dropout of 0.6V allow operation from a 3.7V Li-ion battery down to 4.2V, maintaining stable 3.6V for navigation processors.
Wearable Electronics
SOT-223-3 package is compact for smartwatches, and the low quiescent current supports always-on display and sensor polling.
Industrial Sensor Interfaces
Stable 3.6V rail for 3.3V logic with margin, plus high PSRR rejects motor noise in factory automation environments.
Audio Codec Power
Low noise and 75dB ripple rejection make it suitable for powering audio codecs in portable recorders.
- Q: What is the output voltage?
- A: The MIC5209-3.6YS provides a fixed 3.6V output.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: Input voltage is 3.6V (typical); refer to datasheet for full range.
- Q: What is the dropout voltage?
- A: Dropout is 0.6V at 500mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 170 µA.
- Q: What package is available?
- A: It comes in SOT-223-3.
