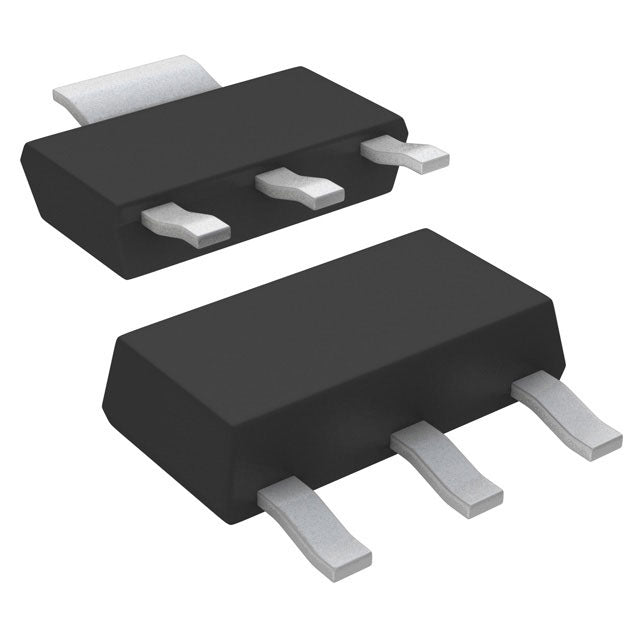

Microchip Technology MIC5209-5.0YS
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.53 | $1.53 |
| 15+ | $1.48 | $22.20 |
| 25+ | $1.45 | $36.25 |
| 50+ | $1.37 | $68.50 |
| 100+ | $1.21 | $121.00 |
| N+ | $0.24 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | 170 µA |
| Current - Supply (Max) | 25 mA |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-261-4, TO-261AA |
| Supplier Device Package | SOT-223-3 |
| ROHS |  |
The MIC5209-5.0YS is a fixed 5V low dropout regulator offering 500mA output current. With a dropout voltage of just 0.6V and a quiescent current of 170 µA, it is well-suited for battery-powered and industrial applications. The SOT-223-3 package ensures easy integration.
- Stable 5V Output: Ideal for powering mixed-signal circuits requiring a precise reference.
- High PSRR (75dB): Minimizes ripple from switching regulators.
- Low Dropout (0.6V): Reduces power dissipation and allows lower input voltages.
- 500mA Current Capability: Suitable for moderate-power loads.
5V Logic Systems
Provides a stable 5V rail for legacy logic ICs and microcontrollers, ensuring reliable operation.
Analog Sensor Power
The high PSRR (75dB) reduces supply noise, improving the accuracy of analog-to-digital conversions.
Battery-Powered Instruments
Low quiescent current (170 µA) helps maximize runtime in portable measurement tools.
Automotive Electronics
Regulates vehicle battery voltage to a clean 5V for infotainment and control modules.
Industrial Control
Delivers 500mA for PLC I/O boards and actuator drivers, with low dropout for thermal efficiency.
Communication Interfaces
Powers RS-232 and CAN transceivers, providing a noise-free 5V supply.
- Q: What is the output voltage of the MIC5209-5.0YS?
- A: The fixed output voltage is 5.0V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.6V at 500mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 170 µA.
- Q: What package is available?
- A: It is available in a SOT-223-3 package.
