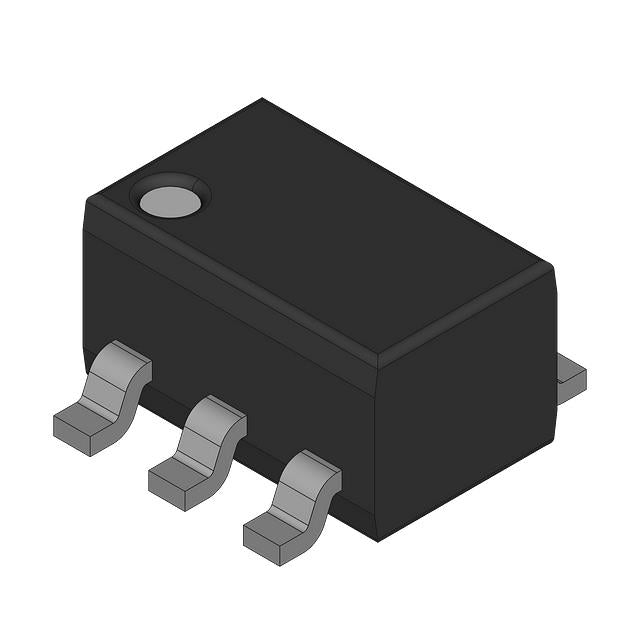

Micrel Inc. MIC5213-2.8YC5
Regular price
$0.24
Regular price
$0.25
Sale price
$0.24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.24 | $0.24 |
| 15+ | $0.23 | $3.45 |
| 25+ | $0.23 | $5.75 |
| 50+ | $0.21 | $10.50 |
| 100+ | $0.19 | $19.00 |
| N+ | $0.04 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Micrel Inc. |
| Product Series | Teeny™ |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.6V @ 80mA |
| Current - Output | 80mA |
| Current - Quiescent (Iq) | 750 µA |
| Current - Supply (Max) | 3 mA |
| PSRR | - |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 5-TSSOP, SC-70-5, SOT-353 |
| Supplier Device Package | SC-70-5 |
The MIC5213-2.8YC5 is a low dropout linear regulator delivering a fixed 2.8V output at up to 80mA. With a dropout of 0.6V and quiescent current of 750 µA, it offers a simple power solution for small battery-operated devices. The SC-70-5 package is ideal for miniaturized designs.
- Ultra-small SC-70-5 package saves PCB space.
- Fixed 2.8V output simplifies design.
- 80mA output is sufficient for low-power circuits.
- Low dropout (0.6V) supports battery operation.
Small Portable Electronics
The SC-70-5 package and 80mA output suit compact devices like e-cigarettes and small sensors.
Battery-Powered Gadgets
2.8V output is compatible with Li-ion batteries near end-of-discharge.
Low-Cost Consumer Devices
Simple fixed-output design reduces BOM complexity for toys and remotes.
Analog Bias Supplies
Provides stable 2.8V for op-amps and comparators in signal conditioning.
LED Drivers
Can power low-current LED indicators with a series resistor.
- Q: What is the output voltage?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can supply up to 80mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout is 0.6V at 80mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 750 µA.
- Q: What package is available?
- A: It comes in a SC-70-5 package.
Base Product Number ：
MIC5213-2.8YC5
MIC5213-2.8YC5.pdf
