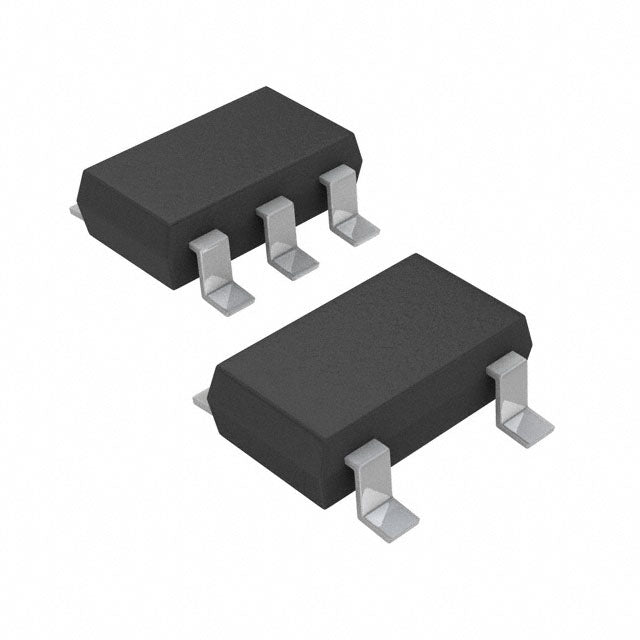

Microchip Technology MIC5232-1.8YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.10 | $2.10 |
| 15+ | $0.49 | $7.35 |
| 25+ | $0.48 | $12.00 |
| 50+ | $0.45 | $22.50 |
| 100+ | $0.40 | $40.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 7V |
| Voltage - Output (Min/Fixed) | 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.3V @ 10mA |
| Current - Output | 10mA |
| Current - Quiescent (Iq) | 3 μA |
| Current - Supply (Max) | - |
| PSRR | 55dB ~ 35dB (10Hz ~ 1kHz) |
| Control Features | Enable |
| Protection Features | Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The Microchip MIC5232-1.8 is a 10mA low dropout linear regulator providing a fixed 1.8V output. With a low quiescent current of 3 μA and a dropout voltage of 0.3V, it is designed for battery-powered and low-current applications. The TSOT-23-5 package offers a compact solution for space-limited designs.
- Low Power Operation: 3 μA quiescent current helps extend battery life in standby applications.
- Stable 1.8V Output: Provides a reliable supply for low-voltage digital and analog circuits.
- Small Package: TSOT-23-5 is suitable for compact PCB layouts.
- Low Dropout: 0.3V dropout at 10mA allows efficient operation with small input-output differentials.
Battery-Powered SRAM Backup
The 3 μA quiescent current and 10mA output are ideal for maintaining SRAM data in battery-backed memory systems.
Low-Power RTC Circuits
Provides a stable 1.8V supply for real-time clocks in meters and appliances, ensuring accurate timekeeping with minimal power.
Portable Instrumentation
Delivers a clean 1.8V rail for low-power op-amps and ADCs in handheld measurement tools.
Microcontroller Standby Power
Maintains a low-current supply for MCU standby modes, preserving battery life in remote controls and sensors.
Energy Harvesting Applications
The low quiescent current makes it suitable for energy harvesting systems where power is limited and precious.
Compact Consumer Electronics
TSOT-23-5 package is suitable for small devices like e-cigarettes, smart tags, and small wearables.
- Q: What is the output voltage?
- A: The output voltage is fixed at 1.8V.
- Q: What is the maximum output current?
- A: The maximum output current is 10mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.3V at 10mA output current.
- Q: What is the quiescent current?
- A: The quiescent current is 3 μA.
- Q: What package is available?
- A: This LDO is available in the TSOT-23-5 package.
