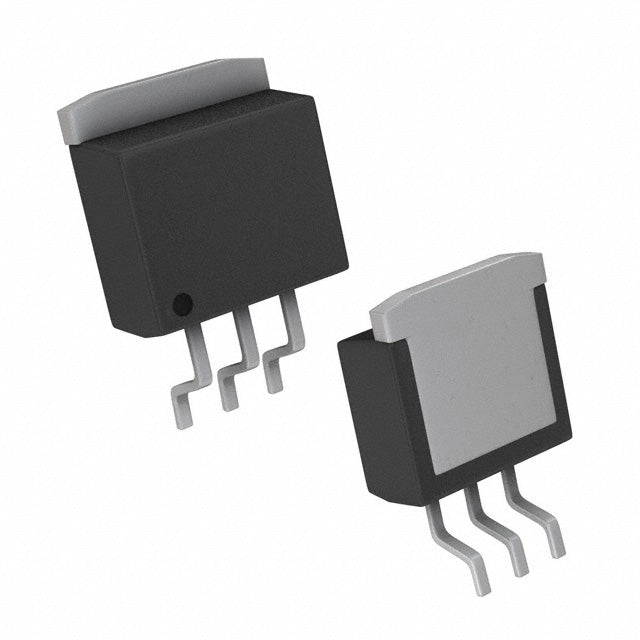

Microchip Technology MIC5237-2.5YU
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $7.60 | $7.60 |
| 15+ | $1.52 | $22.80 |
| 25+ | $1.49 | $37.25 |
| 50+ | $1.40 | $70.00 |
| 100+ | $1.24 | $124.00 |
| N+ | $0.25 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tube | |
| Output Configuration | Obsolete |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 16V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.7V @ 500mA |
| Current - Output | 500mA |
| Current - Quiescent (Iq) | - |
| Current - Supply (Max) | - |
| PSRR | 75dB (120Hz) |
| Control Features | - |
| Protection Features | Over Current, Over Temperature, Reverse Polarity |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-4, D2PAK (3 Leads + Tab), TO-263AA |
| Supplier Device Package | TO-263-3 |
| ROHS |  |
The MIC5237-2.5YU is a fixed 2.5V low dropout linear regulator capable of sourcing 500mA. Packaged in a TO-263-3, it offers a dropout voltage of 0.7V at full load. With an excellent 75dB PSRR at 120Hz, it delivers clean, stable power for audio, industrial, and telecom applications.
- Excellent Ripple Rejection: 75dB PSRR at 120Hz ensures clean output for analog and mixed-signal circuits.
- High Current Capacity: 500mA output supports a wide range of loads.
- Low Dropout: 0.7V dropout maximizes efficiency in battery-powered systems.
- Robust Package: TO-263-3 provides excellent thermal performance for demanding applications.
High-Performance Audio Equipment
The 75dB PSRR at 120Hz effectively suppresses mains hum, making it ideal for powering analog audio stages in amplifiers and mixers.
Industrial Control Systems
Provides a stable 2.5V reference for PLCs and motor controllers, ensuring accurate analog-to-digital conversions in noisy factory environments.
Telecom Infrastructure
Delivers clean 2.5V power to line drivers and transceivers in base stations, where ripple rejection is critical for signal integrity.
Automotive Electronics
The TO-263-3 package handles higher power dissipation, suitable for automotive sensors and ECUs requiring a regulated 2.5V rail.
Medical Imaging Devices
Low noise output supports sensitive imaging sensors and signal processing chains in ultrasound and MRI equipment.
- Q: What is the output voltage of the MIC5237-2.5YU?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 500mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.7V at a 500mA load.
- Q: What is the PSRR?
- A: The PSRR is 75dB at 120Hz.
- Q: What package is available?
- A: It comes in a TO-263-3 package.
