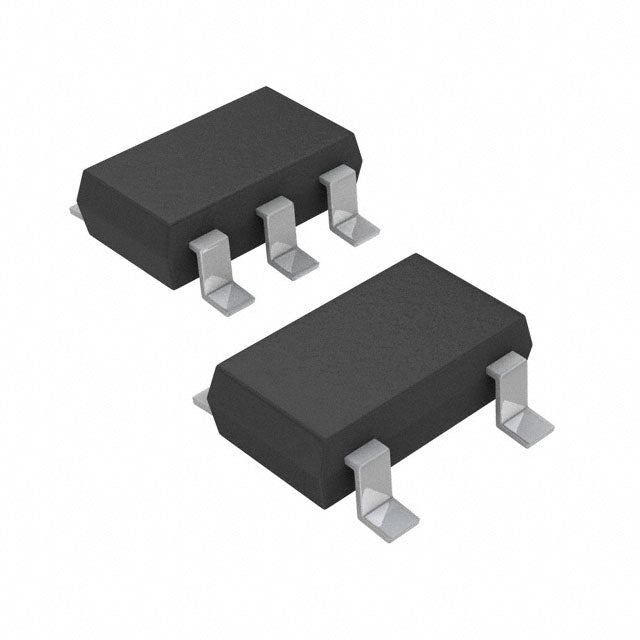

Microchip Technology MIC5255-2.5YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.60 | $0.60 |
| 15+ | $0.58 | $8.70 |
| 25+ | $0.57 | $14.25 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |
The Microchip MIC5255-2.5YD5-TR is a low-dropout linear regulator offering a fixed 2.5V output and 150mA current capability. With a typical quiescent current of 150µA and PSRR of 60dB at 10Hz, it delivers clean, stable power for portable and wireless applications. The TSOT-23-5 package provides a compact solution for space-constrained designs.
- Stable Output: Fixed 2.5V output with 150mA capability ensures reliable power for digital and analog circuits.
- Compact Design: TSOT-23-5 package is ideal for space-limited PCB layouts.
- Good Noise Rejection: 60dB PSRR at 10Hz filters low-frequency noise from input supplies.
- Low Dropout: 250mV dropout at full load maximizes efficiency in battery-operated systems.
Mobile Phone Power Management
The MIC5255's 150mA output and 2.5V fixed voltage are well-suited for powering low-voltage digital cores and I/O interfaces in mobile devices, with a small TSOT-23-5 footprint.
Wireless LAN Modules
With PSRR of 60dB at 10Hz and 50dB at 10kHz, this LDO provides stable power to Wi-Fi and Bluetooth modules, reducing interference and improving wireless performance.
Battery-Powered Instruments
The 150µA quiescent current helps conserve battery life in handheld multimeters, portable medical devices, and field sensors.
Digital Signal Processors (DSPs)
This regulator delivers clean 2.5V power to DSP cores, ensuring reliable operation in audio processing and communication systems.
Automotive Infotainment
Its stable output and low dropout make it suitable for powering infotainment system peripherals, such as touchscreen controllers and audio codecs.
Portable Gaming Consoles
The MIC5255 provides a reliable 2.5V rail for low-power processors and memory in handheld gaming devices, balancing performance and efficiency.
- Q: What is the output voltage of the MIC5255-2.5YD5-TR?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can provide up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.75V to 6.0V (based on 2.5V output plus dropout).
- Q: What is the dropout voltage?
- A: The dropout voltage is typically 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 150µA.
- Q: What package is available?
- A: It comes in a TSOT-23-5 package.
