Microchip Technology MIC5255-2.6YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.15 | $2.15 |
| 15+ | $0.50 | $7.50 |
| 25+ | $0.49 | $12.25 |
| 50+ | $0.46 | $23.00 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |

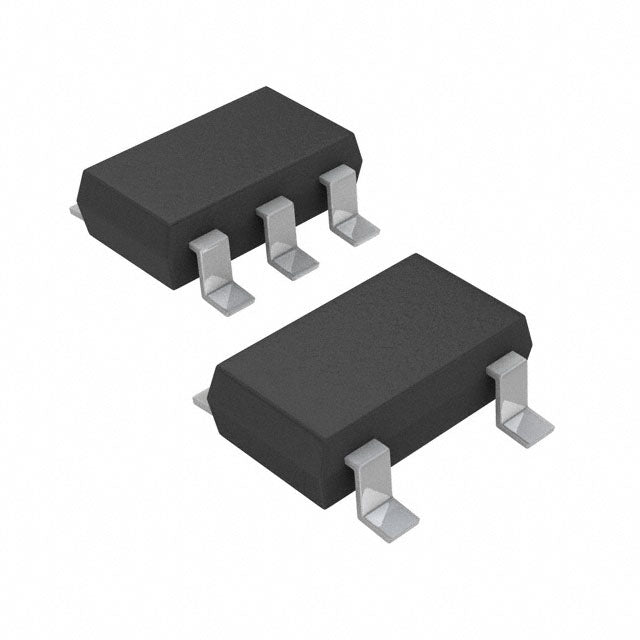

The Microchip MIC5255-2.6YD5-TR is a fixed 2.6V LDO regulator offering 150mA output current. With a dropout of 0.25V at full load and excellent PSRR (60dB at 10Hz), it provides clean, stable power for noise-sensitive portable electronics. The TSOT-23-5 package is ideal for space-constrained designs.
- Excellent PSRR: 60dB at 10Hz to 50dB at 10kHz filters both low and high-frequency noise.
- Low Dropout: 0.25V at 150mA supports efficient operation from batteries.
- Thin Package: TSOT-23-5 is thinner than SOT-23, ideal for slim devices.
- Stable 2.6V Output: Perfect for powering modern low-voltage ICs.
Smartphone Peripheral Power
The 2.6V output is ideal for powering camera sensors or display drivers, with 60dB PSRR at 10Hz reducing low-frequency noise from the main PMIC.
GPS Receivers
The excellent PSRR (60dB at 10Hz to 50dB at 10kHz) ensures a clean supply for GPS RF front-ends, improving positioning accuracy.
Portable Gaming Devices
The TSOT-23-5 package and 150mA output are suitable for powering haptic drivers and small audio amplifiers in handheld consoles.
Medical Monitoring Patches
Low dropout and stable 2.6V output support continuous operation from a thin-film battery, powering biosignal amplifiers.
Industrial Sensor Transmitters
The wide PSRR bandwidth helps reject industrial noise, providing a stable 2.6V rail for 4-20mA loop transmitters.
Battery-Operated Test Equipment
The low quiescent current and compact package make it suitable for handheld multimeters and calibrators.
