Microchip Technology MIC5255-2.85YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.84 | $12.60 |
| 25+ | $0.82 | $20.50 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

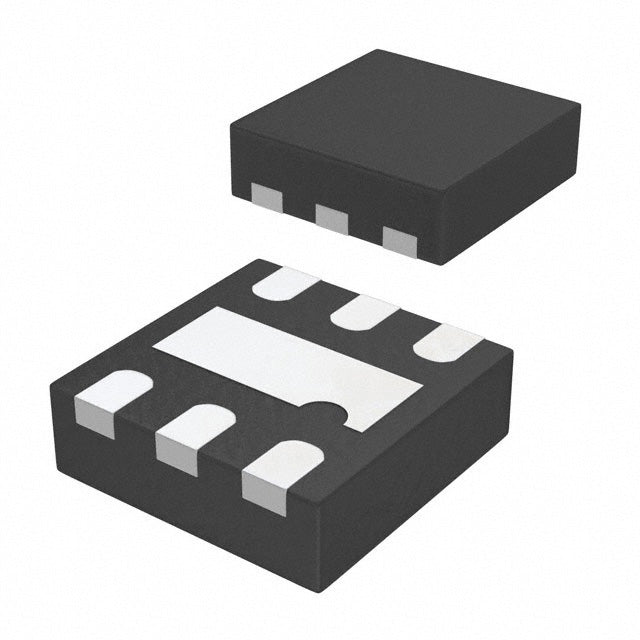

| Package / Case | 6-VDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The MIC5255-2.85YML-TR is a low dropout linear regulator from Microchip Technology, delivering a fixed 2.85V output with up to 150mA of current. Its low 150µA quiescent current and excellent PSRR make it suitable for battery-powered and noise-sensitive applications. Housed in a compact 6-DFN (2x2) package, it offers a dropout voltage of just 0.25V at full load.
- Extended Battery Life: Low 150µA quiescent current minimizes standby power consumption in portable devices.
- Clean Power Delivery: High PSRR (60dB~50dB) suppresses input noise for sensitive analog and RF circuits.
- Space-Saving Design: The 6-DFN (2x2) package is ideal for compact PCB layouts.
- Low Dropout: 0.25V dropout at 150mA allows operation with minimal headroom, improving efficiency.
Portable Battery-Powered Devices
The 150mA output and low 150µA quiescent current make it ideal for extending battery life in wearables, remote sensors, and handheld instruments where standby power is critical.
Noise-Sensitive Analog Circuits
With PSRR of 60dB to 50dB from 10Hz to 10kHz, this LDO effectively filters power supply noise for precision analog front-ends, audio codecs, and sensor signal conditioning.
2.85V Rail Generation for Logic ICs
Provides a stable 2.85V rail for low-voltage digital logic, memory interfaces, and mixed-signal processors that require tight voltage regulation.
Compact IoT Modules
The 2x2mm DFN package saves PCB space in space-constrained IoT modules, smart sensors, and wireless connectivity nodes.
Post-Regulation for Switching Converters
Use after a buck converter to reduce ripple and provide a clean, low-noise 2.85V supply for sensitive RF and analog loads.
- Q: What is the output voltage of the MIC5255-2.85YML-TR?
- A: The fixed output voltage is 2.85V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: Dropout voltage is 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
