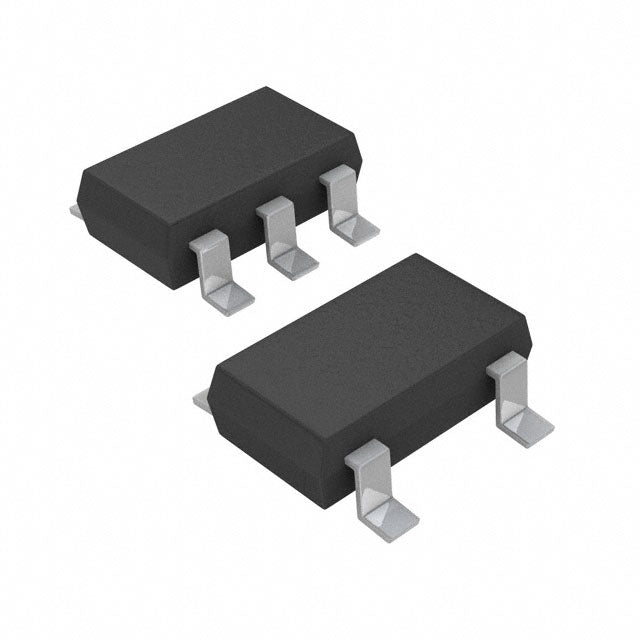

Microchip Technology MIC5255-2.8YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.65 | $0.65 |
| 15+ | $0.63 | $9.45 |
| 25+ | $0.61 | $15.25 |
| 50+ | $0.58 | $29.00 |
| 100+ | $0.51 | $51.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MIC5255-2.8YD5-TR is a low dropout regulator delivering a fixed 2.8V output at up to 150mA. Featuring a low 150µA quiescent current and 0.25V dropout at full load, it is optimized for battery-powered applications. The TSOT-23-5 package enables compact designs.
- Low dropout: 0.25V at 150mA maximizes usable battery range.
- Low quiescent current: 150µA reduces standby power consumption.
- Stable 2.8V output: Ideal for modern low-voltage digital ICs.
- Small package: TSOT-23-5 fits space-constrained PCBs.
Portable GPS Receivers
The 2.8V rail and 150mA output are perfect for GPS modules, while 60dB PSRR at 10Hz ensures stable operation from battery fluctuations.
Digital Cameras
Provides clean 2.8V power for image sensors and DSP cores, with low dropout (0.25V) maintaining regulation as batteries discharge.
Bluetooth Modules
Low quiescent current (150µA) and stable output support Bluetooth SoCs in standby and active modes, extending battery life in earbuds.
Handheld Test Equipment
The TSOT-23-5 package and 2.8V output suit multimeters and portable calibrators requiring precise, low-noise analog supply.
Smart Home Sensors
Ideal for battery-powered door/window sensors, offering efficient power conversion from 3V coin cells with minimal dropout.
Wearable Fitness Trackers
2.8V output powers accelerometers and heart-rate sensors, with 150mA headroom for peak processing loads.
- Q: What is the output voltage?
- A: Fixed 2.8V output.
- Q: What is the maximum current?
- A: 150mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; consult the datasheet.
- Q: What is the dropout voltage?
- A: 0.25V at 150mA.
- Q: What is the quiescent current?
- A: 150µA.
- Q: What package is it available in?
- A: TSOT-23-5.
