Microchip Technology MIC5255-2.9YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.15 | $2.15 |
| 15+ | $0.50 | $7.50 |
| 25+ | $0.49 | $12.25 |
| 50+ | $0.46 | $23.00 |
| 100+ | $0.41 | $41.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |

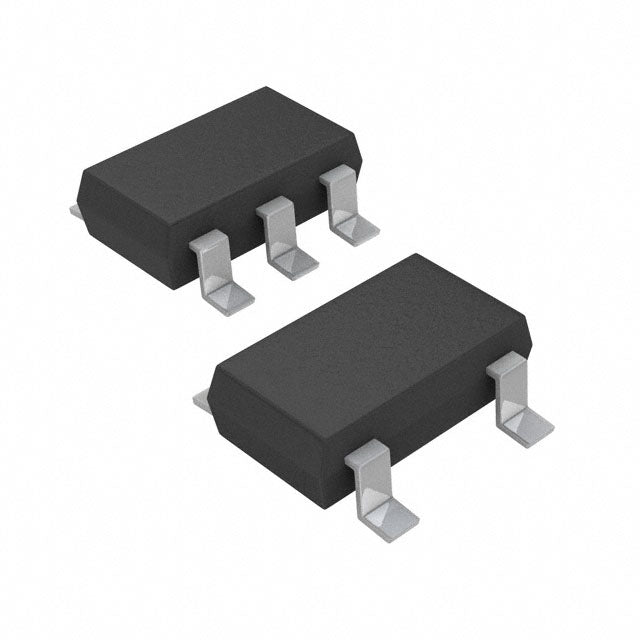

The Microchip MIC5255-2.9YD5-TR is a fixed-output low dropout regulator providing 2.9V at up to 150mA. It features a low dropout voltage of 0.25V at full load and a quiescent current of 150 μA. The device offers excellent PSRR of 60dB to 50dB across 10Hz to 10kHz, making it ideal for noise-sensitive applications. Packaged in the compact TSOT-23-5, this LDO is designed for portable and battery-powered electronics.
- Excellent Noise Rejection: 60dB to 50dB PSRR (10Hz-10kHz) ensures clean output for sensitive analog and RF circuits.
- Low Dropout: 0.25V at 150mA maximizes efficiency in battery-powered designs.
- Compact Footprint: TSOT-23-5 package saves PCB space in space-constrained devices.
- Stable 2.9V Output: Ideal for low-voltage digital and RF applications.
Mobile Phones and Tablets
The 2.9V output is ideal for powering low-voltage digital cores and RF transceivers in mobile devices. The low dropout of 0.25V at 150mA ensures efficient operation from a 3.3V battery rail.
Wireless Modules
For Bluetooth, Wi-Fi, and LoRa modules, this regulator provides a clean 2.9V supply. The excellent PSRR of 60dB at 10Hz to 50dB at 10kHz helps filter out noise from switching regulators upstream.
Portable Audio Players
The MIC5255-2.9YD5-TR delivers stable power to audio DACs and headphone amplifiers. The high PSRR reduces audible noise, improving sound quality in portable media players.
Digital Cameras
Image sensors and DSPs in digital cameras require clean, stable voltage rails. This LDO's 2.9V output and low dropout make it suitable for powering these sensitive components.
GPS Receivers
In GPS modules, the 2.9V rail powers the RF front-end and baseband processor. The low quiescent current of 150 μA helps extend battery life in handheld navigation devices.
- Q: What is the output voltage of the MIC5255-2.9YD5-TR?
- A: The fixed output voltage is 2.9V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 μA.
- Q: What package is available?
- A: This LDO is available in the TSOT-23-5 package.
- Q: What is the output voltage of the MIC5255-2.9YD5-TR?
- A: The fixed output voltage is 2.9V.
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 μA.
- Q: What package is available?
- A: This LDO is available in the TSOT-23-5 package.

MIC5255-2.9YD5-TR.pdf
