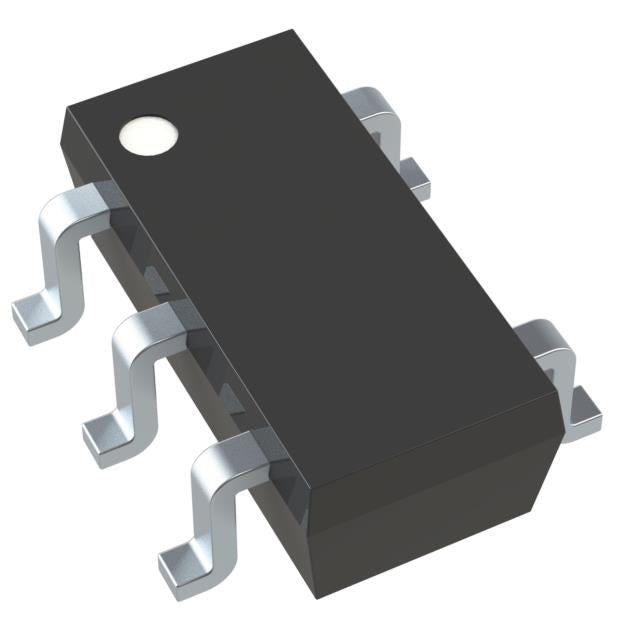

Microchip Technology MIC5255-3.0YM5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.60 | $0.60 |
| 15+ | $0.58 | $8.70 |
| 25+ | $0.57 | $14.25 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.47 | $47.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SC-74A, SOT-753 |
| Supplier Device Package | SOT-23-5 |
| ROHS |  |
The MIC5255-3.0YM5-TR from Microchip Technology is a fixed 3.0V LDO regulator rated for 150mA. It features a dropout voltage of 0.25V at full load and a quiescent current of 150 µA. The SOT-23-5 package is widely used and easy to assemble. With 60dB PSRR from 10Hz to 10kHz, it provides adequate noise filtering for general-purpose consumer and industrial applications.
- Reliable Performance: Proven SOT-23-5 package with robust thermal characteristics.
- Adequate Noise Filtering: 60dB PSRR reduces supply ripple for stable operation.
- Wide Input Tolerance: Accepts up to 6V input, making it versatile for various power sources.
- Cost-Effective: Mature technology offers a budget-friendly solution for 3V rails.
General-Purpose 3V Logic
Provides a stable 3.0V rail for legacy 3V microcontrollers and logic ICs, with 150mA capacity for typical mixed-signal boards.
Battery-Powered Peripherals
The 150 µA quiescent current is acceptable for devices with periodic wake-up cycles, such as wireless mice and keyboards.
Sensor Interface Boards
Powers 3V sensors and their signal conditioning circuits, with 60dB PSRR at low frequencies reducing mains interference.
Consumer Electronics
Ideal for remote controls, toys, and small appliances requiring a regulated 3V supply from 2xAA or Li-ion batteries.
LED Driver Reference
Provides a stable reference voltage for constant-current LED drivers in portable lighting.
Automotive Aftermarket
With 6V max input, it can regulate from a 5V USB supply in car phone chargers and dash cams.
- Q: What is the output voltage?
- A: The MIC5255-3.0YM5-TR provides a fixed 3.0V output.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.0V to 6.0V (typical).
- Q: What is the dropout voltage?
- A: Dropout is 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: Quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a SOT-23-5 package.
