Microchip Technology MIC5255-3.1YM5-TR

Skip to product information
1 of 1

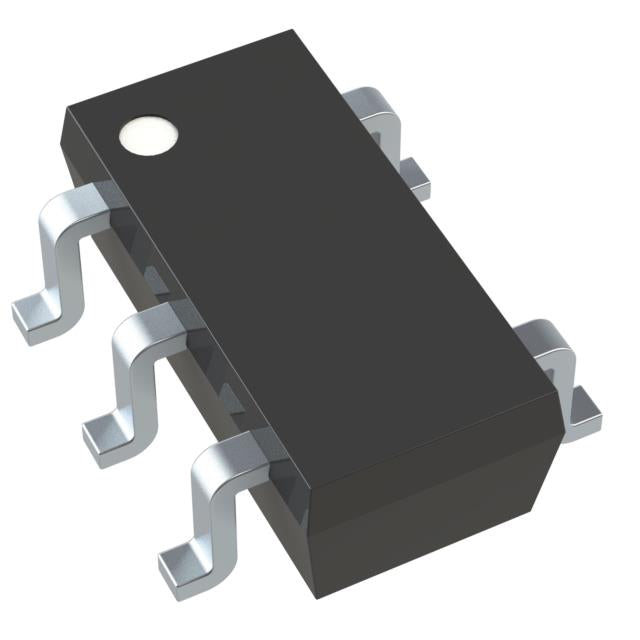

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $0.60
Regular price $0.63 Sale price $0.60
Sale Sold out
Quantity Unit Price Total Price
1 $0.60 $0.60
15+ $0.58 $8.70
25+ $0.57 $14.25
50+ $0.54 $27.00
100+ $0.47 $47.00
N+ $0.09 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Microchip Technology
Product Series
Packaging Cut Tape (CT) | Tape & Reel (TR)
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 6V
Voltage - Output (Min/Fixed) 3.1V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.25V @ 150mA
Current - Output 150mA
Current - Quiescent (Iq) 150 µA
Current - Supply (Max) -
PSRR 60dB ~ 50dB (10Hz ~ 10kHz)
Control Features Enable
Protection Features Over Current, Over Temperature, Under Voltage Lockout (UVLO)
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case SC-74A, SOT-753
Supplier Device Package SOT-23-5
ROHS RoHS Compliant - Hazardous Substance Free Electronic Components | HQICKEY

The MIC5255-3.1YM5-TR is a low dropout linear regulator delivering a fixed 3.1V output at up to 150mA. Its low quiescent current and high PSRR make it suitable for battery-powered and noise-sensitive applications. Housed in a compact SOT-23-5 package, it offers a practical solution for space-limited designs.

  • Extended Battery Life: Low 150µA quiescent current minimizes standby power draw.
  • Clean Power Delivery: 60dB PSRR at 10Hz reduces ripple for sensitive loads.
  • Low Dropout: 0.25V dropout at 150mA maximizes usable battery voltage.
  • Compact Footprint: SOT-23-5 package saves board space.

Portable Battery-Powered Devices

The low 150µA quiescent current and 150mA output make it ideal for extending battery life in wearables, remote controls, and portable sensors.

Noise-Sensitive Analog Circuits

With PSRR of 60dB to 50dB from 10Hz to 10kHz, it effectively filters power supply noise for precision op-amps and ADCs.

Wireless Modules

Stable 3.1V output with low dropout ensures reliable operation of Bluetooth and Zigbee modules even as battery voltage declines.

Reference Voltage Supply

The fixed 3.1V output can serve as a clean reference for comparators and voltage dividers in measurement circuits.

Compact IoT Endpoints

The SOT-23-5 package fits space-constrained PCB designs for smart sensors and edge nodes.

Automotive Interior Electronics

Stable output under varying input conditions supports infotainment and dashboard cluster power rails.

Q: What is the output voltage of the MIC5255-3.1YM5-TR?
A: The fixed output voltage is 3.1V.
Q: What is the maximum output current?
A: It can deliver up to 150mA.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; refer to the datasheet.
Q: What is the dropout voltage?
A: The dropout voltage is 0.25V at 150mA load.
Q: What is the quiescent current?
A: The quiescent current is 150µA.
Q: What package is available?
A: It comes in a SOT-23-5 package.
Base Product Number : MIC5255-3.1YM5
150mA 3.1V High PSRR LDO Linear Regulator Low Quiescent Current Microchip SOT-23-5
