Microchip Technology MIC5255-3.3YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.83 | $0.83 |
| 15+ | $0.80 | $12.00 |
| 25+ | $0.78 | $19.50 |
| 50+ | $0.74 | $37.00 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.25V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 60dB ~ 50dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

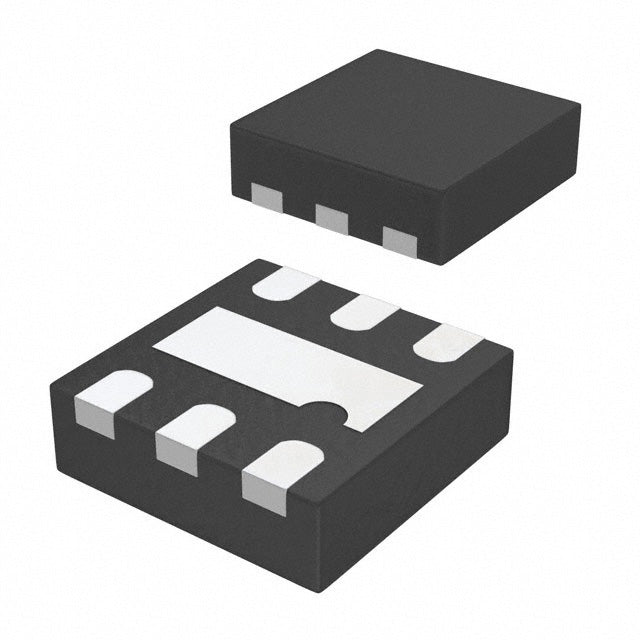

| Package / Case | 6-VDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The MIC5255-3.3YML-TR from Microchip Technology is a low-dropout linear regulator providing a fixed 3.3V output at up to 150mA. With a low 150µA quiescent current and excellent PSRR across a wide frequency range, it delivers clean, stable power for noise-sensitive applications. The compact 6-DFN (2x2) package is ideal for space-constrained portable designs.
- Ultra-Low Dropout: 0.25V dropout at 150mA maximizes efficiency in battery-powered applications, extending operational life.
- Wideband Noise Rejection: 60dB to 50dB PSRR from 10Hz to 10kHz ensures clean power for sensitive RF and analog circuits.
- Compact Package: 6-DFN (2x2) footprint saves valuable PCB space for miniaturized consumer electronics.
- Reliable Performance: Microchip's proven LDO design ensures stable regulation and thermal protection for demanding applications.
Portable Consumer Electronics
The MIC5255's 3.3V output and 150mA capability make it ideal for powering portable media players, digital cameras, and handheld gaming devices.
Wireless Communication Modules
With 60dB to 50dB PSRR from 10Hz to 10kHz, this LDO provides clean 3.3V power for Wi-Fi, GPS, and cellular modules, enhancing receiver sensitivity.
Sensor Signal Conditioning
Its low-noise output is perfect for powering MEMS sensors, temperature sensors, and pressure transducers in industrial and medical applications.
Microcontroller and Logic Power
Delivering stable 3.3V at up to 150mA, it reliably powers MCUs, EEPROMs, and logic ICs in embedded systems and IoT nodes.
Battery-Powered Medical Devices
The low dropout voltage of 0.25V ensures efficient operation from a 3.7V Li-ion battery, extending runtime for glucose monitors and wearable health trackers.
Audio and Video Processing
Its excellent PSRR characteristics make it suitable for powering audio codecs and video processors, preserving signal quality in multimedia devices.
- Q: What is the output voltage of the MIC5255-3.3YML-TR?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 3.3V up to 6.0V (typical).
- Q: What is the dropout voltage?
- A: Dropout voltage is typically 0.25V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is typically 150µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
