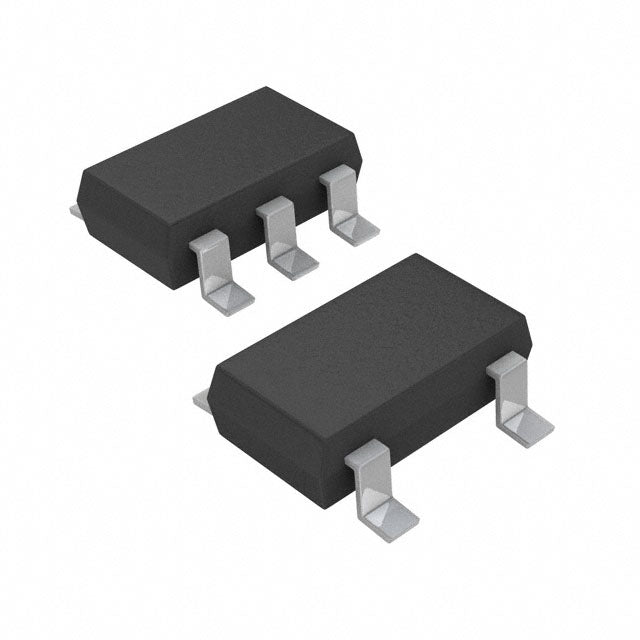

Microchip Technology MIC5259-2.8YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $2.40 | $2.40 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.55V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | 250 μA |
| PSRR | 65dB ~ 53dB (10Hz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MIC5259-2.8YD5-TR is a fixed-output low dropout regulator from Microchip Technology, capable of delivering 300mA at a stable 2.8V. Packaged in a TSOT-23-5, it offers a dropout voltage of 0.55V at full load and a low quiescent current of 150 μA. With PSRR of 65dB to 53dB, it effectively filters supply noise, making it suitable for powering sensitive digital and analog circuits in portable devices.
- Higher Output Current: 300mA capability supports more demanding loads than typical 150mA LDOs.
- Low Quiescent Current: 150 μA helps preserve battery life in always-on applications.
- Excellent PSRR: 65dB at 10Hz reduces low-frequency noise for audio and sensor circuits.
- Compact TSOT-23-5: Saves board space while providing robust thermal performance.
FPGA and DSP Core Supplies
The 300mA output and 2.8V rail support low-power FPGA and DSP cores in portable signal processing equipment.
Battery-Powered Cameras
Provides stable power for image sensors and processors in digital cameras and action cams, with low quiescent current for longer shooting time.
Portable Medical Devices
TSOT-23-5 package and 300mA capability suit insulin pumps and portable diagnostic tools requiring reliable regulation.
Wireless Charging Receivers
Regulates the output from wireless power receivers to a clean 2.8V for charging circuits and load management.
Industrial Handheld Terminals
Powers barcode scanners and rugged PDAs with stable voltage under varying load conditions.
LED Driver Bias Supply
Provides a regulated bias rail for LED driver ICs in portable lighting applications.
- Q: What is the output voltage of the MIC5259-2.8YD5-TR?
- A: The fixed output voltage is 2.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.55V at 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 μA.
- Q: What package is available?
- A: It comes in a TSOT-23-5 package.
