Microchip Technology MIC5301-2.5YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.82 | $0.82 |
| 15+ | $0.79 | $11.85 |
| 25+ | $0.77 | $19.25 |
| 50+ | $0.73 | $36.50 |
| 100+ | $0.65 | $65.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 120 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 50dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |

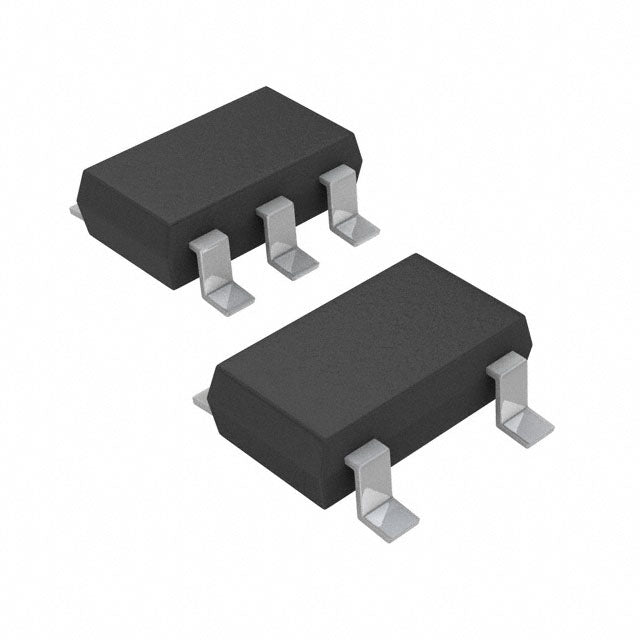

The MIC5301-2.5YD5-TR from Microchip Technology is a fixed 2.5V LDO regulator delivering 150mA in a TSOT-23-5 package. Its ultra-low dropout of 0.1V at full load enables efficient operation from low-voltage sources. With 75dB PSRR at 1kHz and 120 μA quiescent current, it is ideal for portable and noise-sensitive applications.
- Ultra-Low Dropout: 0.1V at 150mA maximizes efficiency with near-depleted batteries.
- High PSRR: 75dB at 1kHz ensures clean power for audio and RF circuits.
- Compact Size: TSOT-23-5 fits space-constrained portable designs.
- Moderate Quiescent Current: 120 μA balances performance and battery life.
Battery-Powered Audio Players
Provides a clean 2.5V rail for audio codecs and amplifiers, with 75dB PSRR at 1kHz reducing audible noise.
Portable Medical Devices
Ultra-low dropout of 0.1V allows operation from a 2.6V battery, extending runtime for insulin pumps and pulse oximeters.
Wireless Sensor Nodes
Powers 2.5V logic and RF transceivers, with 120 μA quiescent current minimizing standby drain.
Camera Modules
Regulates 2.5V for image sensors and autofocus drivers, ensuring stable performance during capture.
Smart Wearables
Supplies 2.5V to display drivers and haptic controllers, with compact TSOT-23-5 fitting tight layouts.
IoT Gateways
Provides a stable 2.5V rail for communication processors, with high PSRR across audio frequencies.
- Q: What is the output voltage?
- A: The MIC5301-2.5YD5-TR provides a fixed 2.5V output.
- Q: What is the maximum output current?
- A: It can supply up to 150mA.
- Q: What is the input voltage range?
- A: Input voltage is not explicitly listed; must be above 2.5V plus dropout (0.1V typical).
- Q: What is the dropout voltage?
- A: Dropout is very low at 0.1V at 150mA.
- Q: What is the quiescent current?
- A: Quiescent current is 120 μA.
- Q: What package is available?
- A: It comes in a TSOT-23-5 package.
