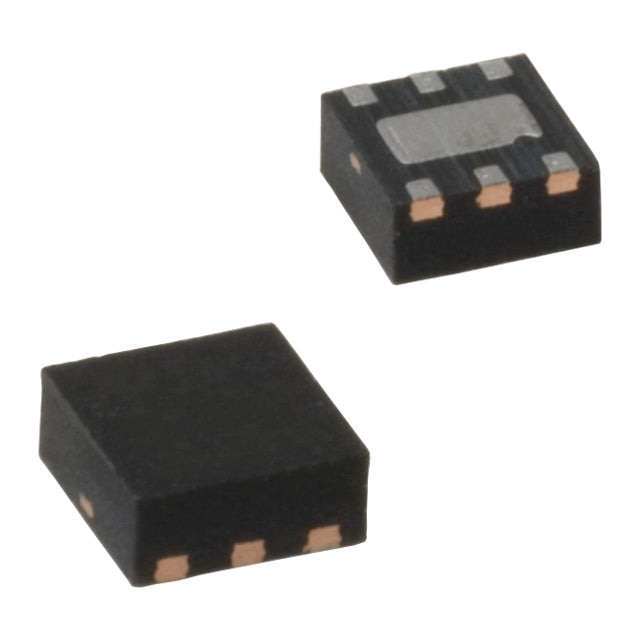

Microchip Technology MIC5304-RGYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.25 | $0.25 |
| 15+ | $0.24 | $3.60 |
| 25+ | $0.23 | $5.75 |
| 50+ | $0.22 | $11.00 |
| 100+ | $0.20 | $20.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 50dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| ROHS |  |
The MIC5304-RGYMT-TR from Microchip Technology is a high-performance LDO offering fixed 1.8V or 3.2V outputs with 150mA capability. Its ultra-low 35 µA quiescent current and 0.15V dropout voltage make it exceptional for battery-powered devices. The 6-TMLF® package (1.6x1.6mm) is among the smallest available, ideal for miniaturized portable electronics.
- Ultra-Low Dropout: 0.15V at 150mA maximizes efficiency when input voltage is close to output.
- Minimal Power Consumption: 35 µA quiescent current significantly extends battery life in standby mode.
- Space-Saving: 1.6x1.6mm TMLF® package is ideal for wearables and IoT modules.
- Excellent Noise Rejection: 65dB PSRR at 1kHz protects sensitive RF and analog circuits.
Smartphones & Tablets
The 0.15V dropout at 150mA allows regulation from a 3.3V rail to 3.2V with minimal power loss, extending battery life in mobile devices.
Bluetooth Low Energy Modules
35 µA quiescent current and 1.8V output are perfect for BLE SoCs in beacons and wearables, maximizing sleep-mode battery life.
Portable GPS Trackers
Ultra-small 1.6x1.6mm package fits into compact tracker designs, while 65dB PSRR at 1kHz ensures stable power for GPS RF front-ends.
Wireless Earbuds
Low dropout and tiny footprint enable direct regulation from a single-cell Li-ion battery to 1.8V for audio DSP and MEMS microphones.
Medical Patch Sensors
The 35 µA Iq supports continuous operation of wearable glucose or ECG patches for weeks on a small coin cell.
IoT Edge Nodes
Provides clean 3.2V rail for sensors and MCUs in smart home devices, with 50dB PSRR at 20kHz filtering switching noise.
- Q: What is the output voltage?
- A: Fixed 1.8V or 3.2V options are available.
- Q: What is the maximum output current?
- A: 150mA.
- Q: What is the input voltage range?
- A: Not specified in provided data; refer to datasheet.
- Q: What is the dropout voltage?
- A: Very low dropout of 0.15V at 150mA.
- Q: What is the quiescent current?
- A: 35 µA, ideal for battery applications.
- Q: What package is available?
- A: 6-TMLF® (1.6x1.6mm) ultra-small package.
