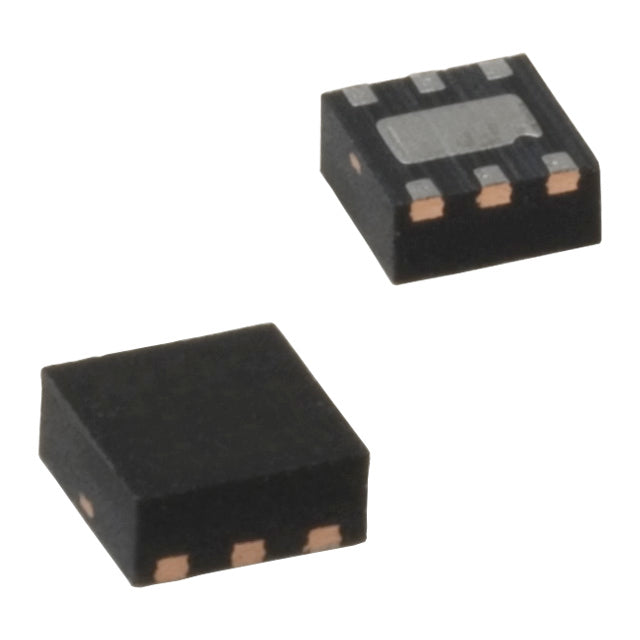

Microchip Technology MIC5304-XDYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.25 | $0.25 |
| 15+ | $0.24 | $3.60 |
| 25+ | $0.23 | $5.75 |
| 50+ | $0.22 | $11.00 |
| 100+ | $0.20 | $20.00 |
| N+ | $0.04 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.85V, 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 50dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| ROHS |  |
The Microchip MIC5304 is a high-performance low dropout linear regulator delivering a fixed 1.8V output at up to 150mA. Its ultra-low 35µA quiescent current and 0.15V dropout voltage make it an excellent choice for battery-powered and portable applications. Housed in a compact 6-TMLF package, it offers excellent PSRR of 65dB to 50dB across 1kHz to 20kHz, ensuring clean, stable power for sensitive electronics.
- Extended Battery Life: Ultra-low 35µA quiescent current minimizes standby drain, ideal for portable devices.
- High Efficiency at Low Voltage: 0.15V dropout at 150mA allows operation close to the output voltage, reducing power loss.
- Clean Power Delivery: PSRR of 65dB to 50dB suppresses noise from 1kHz to 20kHz, protecting sensitive analog and RF circuits.
- Space-Saving Design: The 1.6x1.6mm TMLF package fits into compact PCBs for wearables and IoT modules.
Battery-Powered IoT Sensors
The low 35µA quiescent current and 150mA output make it ideal for always-on IoT sensors, extending battery life while providing a stable 1.8V rail for microcontrollers and radios.
Portable Medical Devices
With a dropout of only 0.15V at 150mA, the MIC5304 maintains regulation even as the battery discharges, ensuring reliable operation for glucose monitors and wearable health trackers.
Wireless Audio Modules
The PSRR of 65dB to 50dB (1kHz to 20kHz) effectively filters power supply noise, delivering clean power to Bluetooth audio codecs and amplifiers for improved sound quality.
Wearable Fitness Trackers
The ultra-small 1.6x1.6mm TMLF package fits into space-constrained wearable designs, while the low dropout maximizes efficiency from a single-cell Li-ion battery.
Smart Home Controllers
For smart thermostats and security keypads, the MIC5304 provides a stable 1.8V supply for low-power MCUs, with the low quiescent current reducing standby power consumption.
Industrial Sensor Interfaces
The wide input range and stable output make it suitable for industrial sensors operating from 2V to 3.1V rails, ensuring consistent performance in noisy environments.
