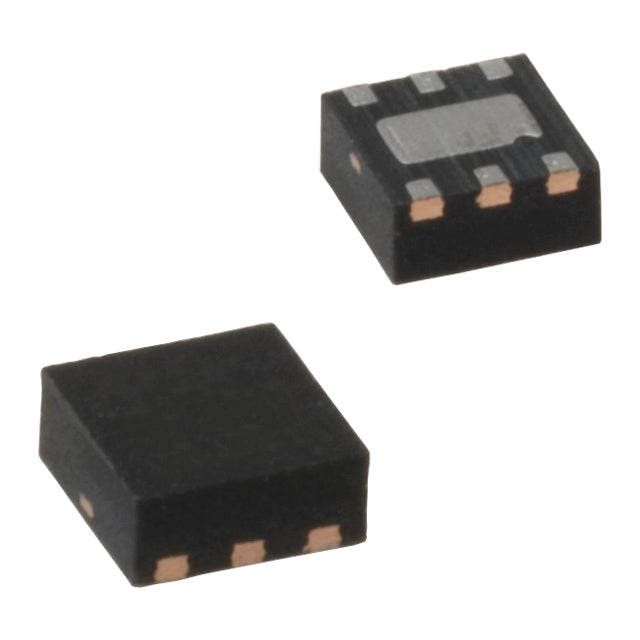

Microchip Technology MIC5304-XGHYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.19 | $2.85 |
| 25+ | $0.19 | $4.75 |
| 50+ | $0.18 | $9.00 |
| 100+ | $0.16 | $16.00 |
| N+ | $0.03 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.88V, 3.15V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.15V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 35 µA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 50dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| ROHS |  |
The MIC5304-XGHYMT-TR from Microchip Technology is a high-performance 1.88V linear regulator capable of delivering 150mA. It features an ultra-low dropout voltage of just 0.15V at full load, making it ideal for low-voltage applications. The quiescent current is only 35 µA, and the PSRR is 65dB at 1kHz. The compact 6-TMLF® package (1.6x1.6mm) is perfect for space-constrained designs.
- Ultra-Low Dropout (0.15V @ 150mA): Maximizes efficiency in low-voltage systems.
- Low Quiescent Current (35 µA): Extends battery life in portable devices.
- Ultra-Small Package (1.6x1.6mm): Enables miniaturized product designs.
- Good PSRR (65dB @ 1kHz): Provides clean power for sensitive circuits.
FPGA and DSP Core Supplies
The ultra-low dropout of 0.15V at 150mA makes it ideal for powering low-voltage cores in FPGAs and DSPs.
Portable Medical Devices
Low quiescent current and small package make it suitable for hearing aids and glucose monitors.
High-Density PCB Designs
The tiny 1.6x1.6mm TMLF® package allows for placement in space-constrained layouts.
Battery-Powered IoT Modules
With 35 µA quiescent current, it helps extend battery life in connected sensors.
Precision Analog Circuits
Provides a stable, low-noise supply for operational amplifiers and ADCs.
- Q: What is the output voltage of the MIC5304-XGHYMT-TR?
- A: It provides a fixed 1.88V output (based on the XGH option).
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.15V at 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is 35 µA.
- Q: What package is available?
- A: It comes in a 6-TMLF® package (1.6x1.6mm).
MIC5304-XGHYMT-TR.pdf
- Q: What is the output voltage of the MIC5304-XGHYMT-TR?
- A: It provides a fixed 1.88V output (based on the XGH option).
- Q: What is the maximum output current?
- A: The maximum output current is 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.15V at 150mA.
- Q: What is the quiescent current?
- A: The quiescent current is 35 µA.
- Q: What package is available?
- A: It comes in a 6-TMLF® package (1.6x1.6mm).
