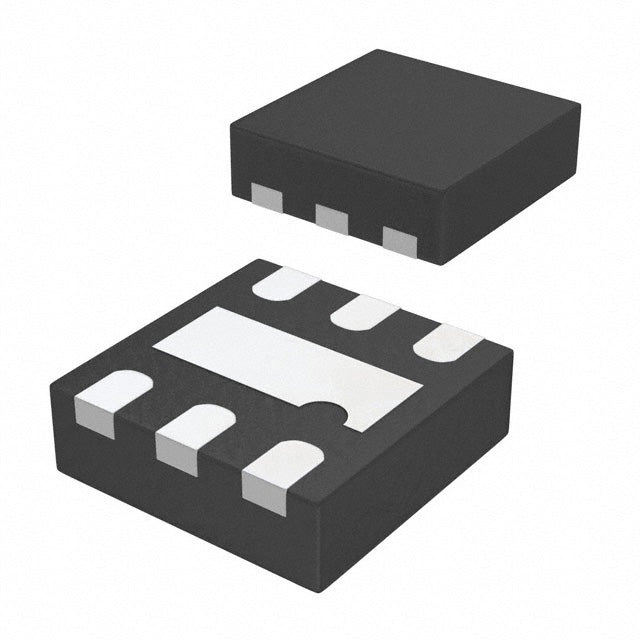

Microchip Technology MIC5305-1.5YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad, 6-MLF? |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The MIC5305-1.5YML-TR is a fixed-output low dropout regulator from Microchip Technology, offering a stable 1.5V output at up to 150mA. Its ultra-compact 6-DFN (2x2) package is ideal for space-constrained designs. With a quiescent current of 150 μA and exceptional PSRR of 85dB to 65dB, it delivers clean, efficient power for sensitive low-voltage applications.
- Ultra-High PSRR: 85dB at 1kHz provides superior noise filtering for RF and analog circuits.
- Ultra-Small Package: 6-DFN (2x2) minimizes PCB footprint for miniaturized devices.
- Low Quiescent Current: 150 μA extends battery life in portable applications.
- Stable 1.5V Output: Ideal for modern low-voltage digital ICs.
Low-Voltage Microcontroller Cores
Provides a precise 1.5V rail for modern low-power MCUs and SoCs, enabling efficient operation in battery-powered devices.
RF and Wireless Transceivers
With excellent PSRR of 85dB to 65dB, it ensures clean power for RF front-ends in Bluetooth and BLE modules, reducing spurious emissions.
Portable Wearables
The tiny 6-DFN package and low quiescent current make it ideal for smartwatches and fitness trackers where space and power are critical.
FPGA Auxiliary Supplies
Powers auxiliary logic and configuration circuits in small FPGAs requiring a stable 1.5V rail.
Sensor Signal Conditioning
Provides a noise-free supply for precision analog front-ends in industrial and medical sensors.
Memory Power
Supplies low-voltage SRAM and flash memory in portable electronics, ensuring reliable data retention.
- Q: What is the output voltage of the MIC5305-1.5YML-TR?
- A: The fixed output voltage is 1.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided data.
- Q: What is the quiescent current?
- A: The quiescent current is 150 μA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
