Microchip Technology MIC5305-2.5YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.57 | $0.57 |
| 15+ | $0.55 | $8.25 |
| 25+ | $0.54 | $13.50 |
| 50+ | $0.51 | $25.50 |
| 100+ | $0.45 | $45.00 |
| N+ | $0.09 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-VDFN Exposed Pad, 6-MLF? |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |

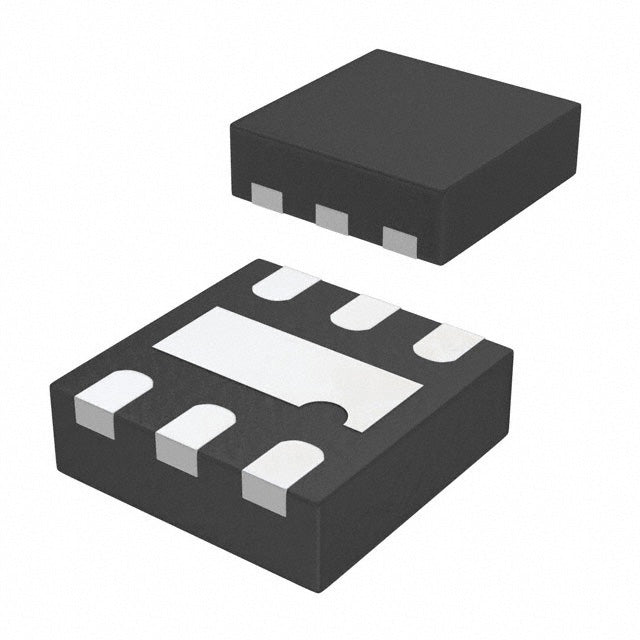

The MIC5305-2.5YML-TR from Microchip Technology is a fixed-output low dropout regulator providing 2.5V at up to 150mA. Housed in a compact 6-DFN (2x2) package, it features a low quiescent current of 150 µA and exceptional PSRR of 85dB to 65dB (1kHz to 10kHz), making it ideal for noise-sensitive applications such as audio and RF circuits.
- Superior Noise Rejection: 85dB to 65dB PSRR ensures clean output for high-frequency applications.
- Ultra-Compact: 6-DFN (2x2) package is ideal for space-constrained designs.
- Low Quiescent Current: 150 µA helps preserve battery life.
- Stable Fixed Output: 2.5V rail suitable for precision analog and digital circuits.
High-Performance Audio Circuits
With 85dB to 65dB PSRR (1kHz to 10kHz), this regulator provides exceptionally clean power for audio DACs and amplifiers.
RF Power Supplies
The superior PSRR helps reduce high-frequency noise in RF transceivers and power amplifiers.
Precision Analog Systems
Stable 2.5V output with low noise is ideal for reference voltage sources in data acquisition systems.
Portable Instrumentation
The tiny 6-DFN package and low quiescent current support compact, battery-operated test equipment.
FPGA Core Voltage
Provides a clean 2.5V rail for FPGA auxiliary circuits and I/O banks.
Medical Monitoring Devices
Low noise and high PSRR ensure reliable operation in sensitive patient monitoring equipment.
- Q: What is the output voltage of the MIC5305-2.5YML-TR?
- A: The fixed output voltage is 2.5V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is not specified in the provided data; refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
