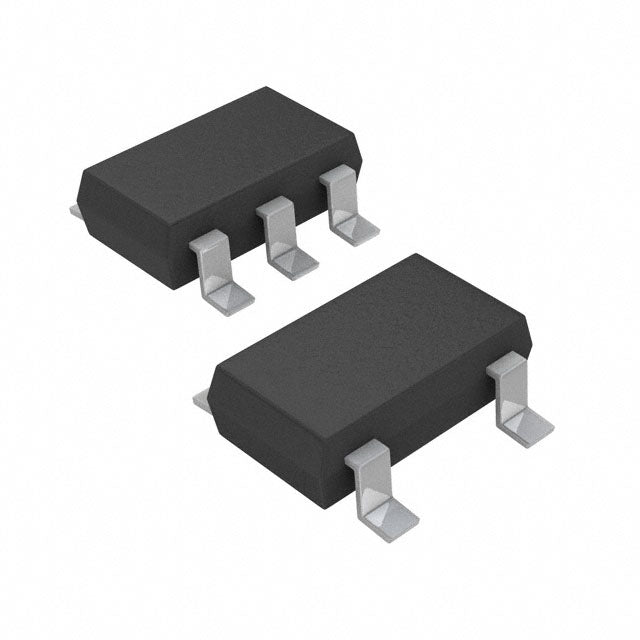

Microchip Technology MIC5305-3.3YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.47 | $0.47 |
| 15+ | $0.45 | $6.75 |
| 25+ | $0.44 | $11.00 |
| 50+ | $0.42 | $21.00 |
| 100+ | $0.37 | $37.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MIC5305-3.3YD5-TR from Microchip Technology is a high-performance low dropout regulator delivering a fixed 3.3V output. It supports up to 150mA with a dropout voltage of 0.85V. Featuring excellent PSRR of 85dB at 1kHz and 65dB at 10kHz, it is designed for noise-sensitive applications such as RF and audio. The TSOT-23-5 package offers a compact solution for portable and space-constrained designs.
- Superior Noise Rejection: 85dB PSRR at 1kHz ensures clean power for RF and audio circuits.
- Stable Output: Maintains 3.3V with minimal ripple under varying loads.
- Compact Package: TSOT-23-5 saves board space.
- Wide Compatibility: Suitable for digital, analog, and RF loads.
RF Power Amplifiers
With 85dB PSRR at 1kHz, it provides an exceptionally clean 3.3V supply, reducing phase noise in RF transmitters.
High-End Audio DACs
The low noise and high PSRR (65dB at 10kHz) ensure pristine audio quality in portable players.
FPGA I/O Banks
Stable 3.3V rail for FPGA I/O and auxiliary logic, with 150mA supporting multiple peripherals.
Automotive Infotainment
Reliable 3.3V for touchscreen controllers and display drivers in harsh environments.
Precision Instrumentation
Low output noise and high ripple rejection make it suitable for sensitive measurement circuits.
Network Routers
Provides clean power for PHY chips and switch ICs, ensuring reliable data transmission.
