Microchip Technology MIC5305-3.3YML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.53 | $0.53 |
| 15+ | $0.52 | $7.80 |
| 25+ | $0.50 | $12.50 |
| 50+ | $0.48 | $24.00 |
| 100+ | $0.42 | $42.00 |
| N+ | $0.08 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.85V @ 150mA |
| Current - Output | 150mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 85dB ~ 65dB (1kHz ~ 10kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

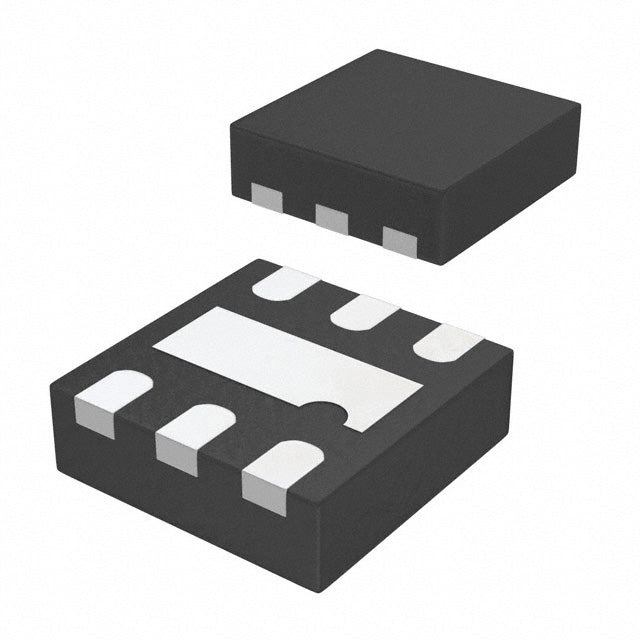

| Package / Case | 6-VDFN Exposed Pad, 6-MLF® |
| Supplier Device Package | 6-DFN (2x2) |
| ROHS |  |
The MIC5305-3.3YML-TR is a high-performance low dropout linear regulator delivering a fixed 3.3V output with up to 150mA of current. Its exceptional power supply rejection ratio of 85dB at 1kHz ensures clean, stable power for noise-sensitive applications. With a low quiescent current of 150µA and a compact 6-DFN package, this regulator is engineered for battery-powered and space-constrained designs requiring reliable voltage regulation.
- Excellent Noise Filtering: 85dB PSRR at 1kHz ensures clean power for sensitive analog and RF circuits.
- Low Power Consumption: 150µA quiescent current extends battery life in portable applications.
- Compact Footprint: 6-DFN (2x2) package saves valuable PCB space.
- Stable 3.3V Output: Fixed output eliminates external resistor divider, simplifying design.
Portable Battery-Powered Devices
The MIC5305-3.3YML-TR's low quiescent current of 150µA and high PSRR of 85dB at 1kHz make it ideal for extending battery life in portable electronics while maintaining clean power rails.
RF and Wireless Modules
With PSRR of 85dB to 65dB from 1kHz to 10kHz, this LDO effectively filters noise for sensitive RF transceivers and wireless communication modules, ensuring stable signal integrity.
Precision Analog Circuits
The high ripple rejection at low frequencies makes this regulator suitable for powering precision analog-to-digital converters (ADCs) and operational amplifiers where supply noise directly impacts accuracy.
Compact IoT Sensors
The small 6-DFN (2x2) package allows for space-constrained IoT sensor nodes, providing a stable 3.3V rail for microcontrollers and sensors with minimal board footprint.
Audio Processing Equipment
The excellent PSRR characteristics help minimize power supply hum and noise in portable audio codecs and amplifiers, delivering cleaner audio output.
Wearable Electronics
The combination of low dropout (0.85V) and small package makes this LDO suitable for wearable devices operating from single-cell lithium batteries, maintaining regulation even as the battery discharges.
- Q: What is the output voltage of the MIC5305-3.3YML-TR?
- A: The fixed output voltage is 3.3V.
- Q: What is the maximum output current?
- A: It can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.85V at 150mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150µA.
- Q: What package is available?
- A: It comes in a 6-DFN (2x2) package.
