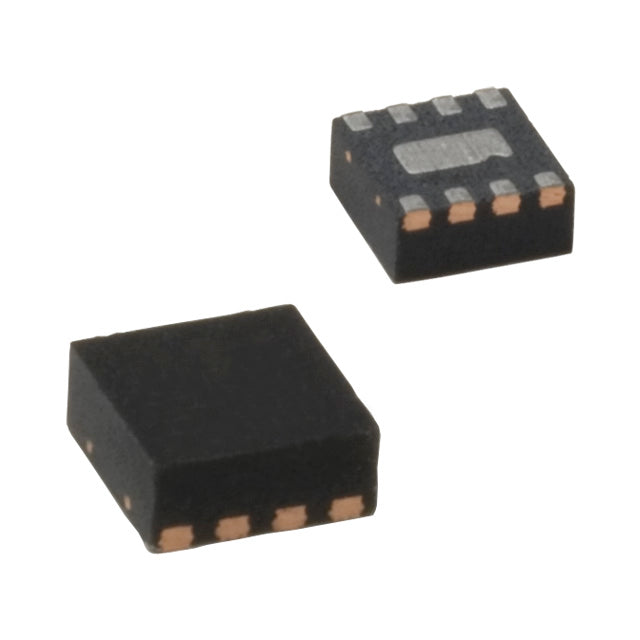

Microchip Technology MIC5310-JJYML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.90 | $3.90 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V, 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 μA |
| Current - Supply (Max) | 190 μA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF? |
| Supplier Device Package | 8-MLF? (2x2) |
| ROHS |  |
The MIC5310-JJYML-TR from Microchip Technology is a dual 150mA low-dropout linear regulator offering a fixed 2.5V output. Its ultra-low dropout voltage of 0.1V and low 120 μA quiescent current make it an excellent choice for battery-powered and noise-sensitive applications. Housed in a compact 8-MLF package, it delivers high PSRR performance for clean, stable power rails.
- Extended Battery Life: The ultra-low 120 μA quiescent current minimizes power draw in standby and light-load conditions, ideal for portable devices.
- High Noise Rejection: With 70dB to 65dB PSRR from 1kHz to 20kHz, it effectively filters supply noise, ensuring clean power for sensitive analog and RF circuits.
- Minimal Voltage Drop: A dropout voltage of just 0.1V at 150mA allows operation from a 2.5V rail with maximum headroom, improving efficiency.
- Space-Saving Design: The dual outputs in a 2x2mm MLF package reduce board space and component count, simplifying PCB layout.
Battery-Powered IoT Sensors
The MIC5310-JJYML-TR's low 120 μA quiescent current and 2.5V fixed output are ideal for always-on IoT sensors, extending battery life while providing a stable rail for microcontrollers and sensors.
Portable Medical Devices
With dual 150mA outputs and a low dropout of 0.1V, this LDO ensures clean, stable power for sensitive analog front-ends in portable glucose monitors or pulse oximeters, minimizing noise-related measurement errors.
RF Transceivers
The high PSRR of 70dB to 65dB (1kHz to 20kHz) suppresses power supply noise, making it suitable for powering RF transceivers where signal integrity is critical for reliable wireless communication.
Wearable Electronics
The compact 8-MLF (2x2) package and dual outputs allow designers to power both digital and analog sections of a smartwatch or fitness tracker from a single, space-saving component.
Noise-Sensitive Audio Codecs
For portable audio devices, the MIC5310 provides a clean 2.5V supply to codecs and amplifiers, reducing audible hum and hiss thanks to its excellent ripple rejection across the audio frequency range.
FPGA Core Power
In low-power FPGAs requiring a 2.5V core supply, this dual LDO can power the core and auxiliary logic, ensuring tight voltage regulation under varying load conditions.
- Q: What is the output voltage of the MIC5310-JJYML-TR?
- A: This LDO has a fixed output voltage of 2.5V on both channels.
- Q: What is the maximum output current?
- A: Each output can deliver up to 150mA, with a total of 150mA per channel.
- Q: What is the input voltage range?
- A: The input voltage is 2.5V, designed for a 2.5V rail.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA per channel.
- Q: What is the quiescent current?
- A: The quiescent current is only 120 μA, making it efficient for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact 8-MLF (2x2) package.
