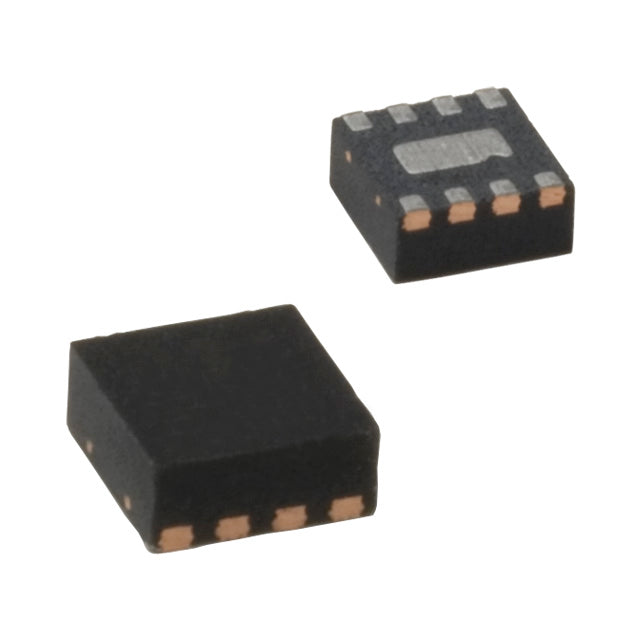

Microchip Technology MIC5310-NKYML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.90 | $3.90 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.6V, 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 μA |
| Current - Supply (Max) | 190 μA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF? |
| Supplier Device Package | 8-MLF? (2x2) |
| ROHS |  |
The MIC5310-NKYML-TR from Microchip Technology is a dual-output LDO regulator providing fixed 2.6V and 2.85V outputs at 150mA per channel. With a low dropout of 0.1V and 120 µA quiescent current, it delivers exceptional efficiency for battery-powered devices. The 8-MLF (2x2) package ensures a compact footprint, while 70dB PSRR guarantees clean power for noise-sensitive applications.
- Optimized Voltage Pair: 2.6V and 2.85V outputs suit a wide range of digital and RF applications.
- Low Power Draw: 120 µA quiescent current extends battery life in portable devices.
- High PSRR: 70dB at 1kHz filters supply noise, ensuring clean power for sensitive circuits.
- Compact Design: 2x2mm MLF package saves valuable PCB space.
DDR Memory Power
The 2.6V rail can power DDR VDD while the 2.85V rail supports VDDQ, providing clean, stable power for memory systems.
Portable Gaming Devices
Dual outputs power both the application processor and display driver, with low dropout extending playtime from a single battery.
RF Communication Systems
The 2.85V rail is ideal for RF power amplifiers, while the 2.6V rail powers baseband logic, with 70dB PSRR ensuring signal integrity.
Battery Management ICs
Low quiescent current and precise output voltages make it suitable for powering battery monitoring circuits.
Automotive Infotainment
Reliable dual-rail output powers both audio processors and display controllers in car entertainment systems.
Precision Analog Circuits
High PSRR and low noise provide clean power for op-amps and ADCs requiring stable 2.6V and 2.85V supplies.
- Q: What are the output voltages of the MIC5310-NKYML-TR?
- A: This dual LDO provides fixed outputs of 2.6V and 2.85V.
- Q: What is the maximum current per channel?
- A: Each channel supports up to 150mA, with a total of 300mA for both outputs.
- Q: What is the input voltage range?
- A: The input voltage range is from 2.6V to 2.85V, depending on the channel.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.1V at 150mA per channel, enabling efficient low-voltage operation.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA, ideal for battery-powered applications.
- Q: What package is used?
- A: It comes in an 8-MLF (2x2) package, suitable for compact designs.
