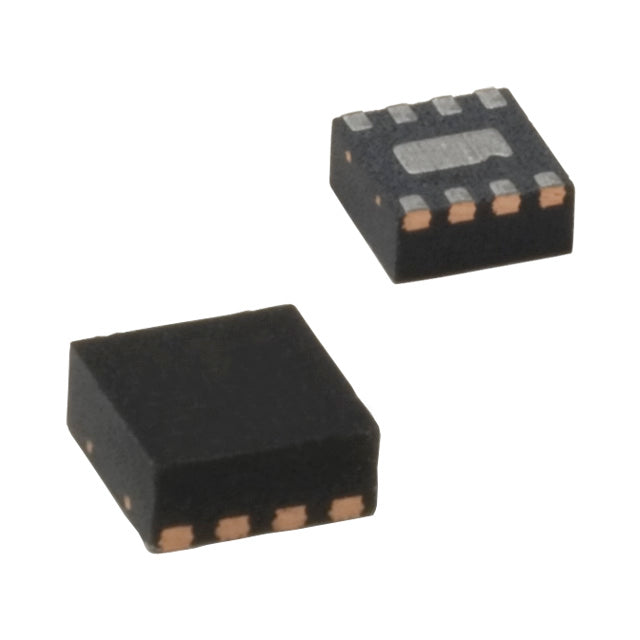

Microchip Technology MIC5310-PGYML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.13 | $1.13 |
| 15+ | $1.09 | $16.35 |
| 25+ | $1.07 | $26.75 |
| 50+ | $1.01 | $50.50 |
| 100+ | $0.89 | $89.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 190 µA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® |
| Supplier Device Package | 8-MLF® (2x2) |
| ROHS |  |
The MIC5310-PGYML-TR from Microchip Technology is a dual-output, low-dropout linear regulator engineered for precision power management. It delivers fixed 1.8V and 3.0V outputs, each supporting up to 150mA with an ultra-low dropout of just 0.1V. With a quiescent current of only 120 µA and excellent PSRR of 70dB to 65dB across 1kHz to 20kHz, this regulator ensures clean, stable power for noise-sensitive applications. Housed in a compact 8-MLF® (2x2) package, it is ideal for space-constrained, battery-powered devices.
- Extended Battery Life: Ultra-low 120 µA quiescent current minimizes standby power draw.
- High Noise Rejection: 70dB to 65dB PSRR (1kHz-20kHz) filters supply noise for sensitive analog circuits.
- Dual Output Flexibility: Two independent 150mA rails (1.8V/3.0V) simplify multi-voltage designs.
- Minimal Power Loss: 0.1V dropout at full load improves efficiency in low-headroom applications.
Dual-Rail Power for Sensor Systems
Use the 1.8V rail for digital logic and the 3.0V rail for analog sensors, ensuring clean, isolated power with 70dB PSRR at 1kHz.
Battery-Powered Wearables
The 120 µA quiescent current and 0.1V dropout extend battery life while maintaining stable 1.8V/3.0V rails for MCU and RF modules.
Portable Audio DACs
With 65dB PSRR at 20kHz, this LDO minimizes high-frequency noise for audio codecs, preserving signal fidelity.
IoT Edge Nodes
Dual outputs power both a low-power sensor hub (1.8V) and a wireless transceiver (3.0V) from a single 3.3V supply.
Precision Reference Circuits
The low dropout and tight regulation ensure stable reference voltages for ADC/DAC circuits in industrial instruments.
Compact Medical Monitors
The 2x2 MLF package fits space-constrained designs, delivering reliable dual-rail power for vital sign monitoring.
- Q: What is the output voltage of the MIC5310-PGYML-TR?
- A: This dual LDO provides two fixed output voltages: 1.8V and 3.0V.
- Q: What is the maximum output current per channel?
- A: Each of the two outputs can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.8V to 3V, designed for low-voltage applications.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA per channel.
- Q: What is the quiescent current?
- A: The quiescent current is only 120 µA, making it suitable for battery-powered devices.
- Q: What package is available?
- A: It comes in a compact 8-MLF® (2x2) package.
