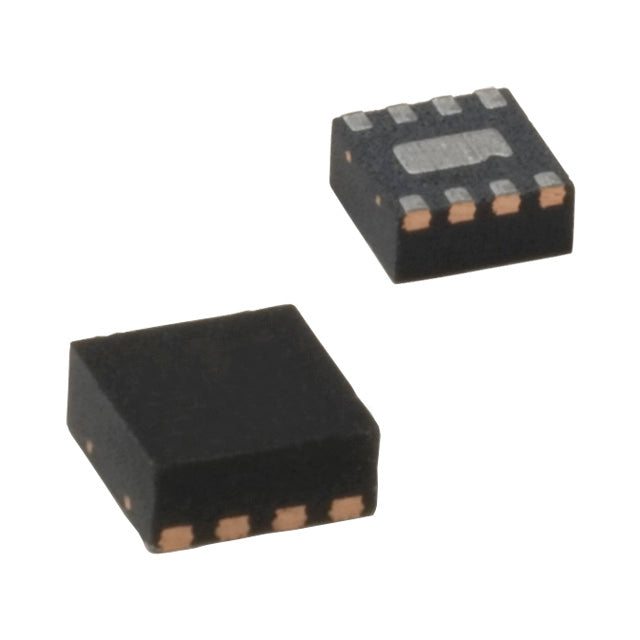

Microchip Technology MIC5310-PJYML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.90 | $3.90 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 2.5V, 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 μA |
| Current - Supply (Max) | 190 μA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF? |
| Supplier Device Package | 8-MLF? (2x2) |
| ROHS |  |
The MIC5310-PJYML-TR from Microchip Technology is a dual-output LDO regulator providing fixed 2.5V and 3.0V rails, each capable of 150mA. Its ultra-low dropout of 0.1V at full load and 120 µA quiescent current make it highly efficient for battery-powered devices. The 8-MLF (2x2) package offers a compact solution with excellent PSRR of 70dB to 65dB (1kHz-20kHz), ensuring clean power for mixed-signal applications.
- Versatile Voltage Pairing: 2.5V and 3.0V outputs cover common digital and analog supply requirements in one IC.
- High Efficiency: 0.1V dropout at 150mA minimizes power loss, improving overall system efficiency.
- Low Noise Operation: PSRR of 70dB to 65dB suppresses supply noise, protecting sensitive analog circuits.
- Compact Integration: Dual outputs in a 2x2mm MLF package save PCB space and reduce BOM cost.
Mixed-Voltage Digital Systems
The 2.5V and 3.0V outputs are ideal for powering mixed-voltage logic systems, such as FPGAs with 2.5V core and 3.0V I/O banks, simplifying power distribution.
Battery-Powered Handheld Tools
Low dropout (0.1V) and 120 µA quiescent current extend runtime in cordless tools, providing stable 2.5V for microcontrollers and 3.0V for motor drivers.
Optical Transceivers
Clean 2.5V and 3.0V rails with high PSRR (70dB at 1kHz) ensure stable bias and modulation voltages for laser drivers in SFP modules.
Portable Test Equipment
Dual outputs power both digital logic (2.5V) and analog front-ends (3.0V), with low noise characteristics critical for accurate measurements.
Automotive Infotainment
Stable 2.5V for DSP cores and 3.0V for display interfaces, with low dropout ensuring operation during cold-crank conditions.
Smart Home Controllers
Compact 2x2mm package and dual outputs fit perfectly in smart thermostats, powering sensors (2.5V) and wireless modules (3.0V).
- Q: What are the output voltages of the MIC5310-PJYML-TR?
- A: This dual LDO provides fixed outputs of 2.5V and 3.0V.
- Q: What is the maximum output current?
- A: Each channel can deliver up to 150mA.
- Q: What is the input voltage range?
- A: The input voltage range is 2.5V to 3.0V, depending on the channel.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.1V at 150mA per channel.
- Q: What is the quiescent current?
- A: The quiescent current is 120 µA, ideal for low-power designs.
- Q: What package is available?
- A: It comes in an 8-MLF (2x2) package.
