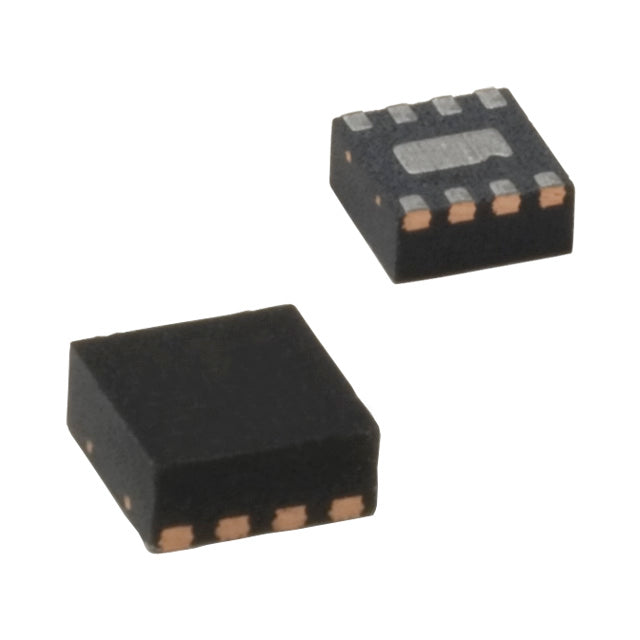

Microchip Technology MIC5310-SGYML-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.13 | $1.13 |
| 15+ | $1.09 | $16.35 |
| 25+ | $1.07 | $26.75 |
| 50+ | $1.01 | $50.50 |
| 100+ | $0.89 | $89.00 |
| N+ | $0.18 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | Tape & Reel (TR) |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 3.3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 120 µA |
| Current - Supply (Max) | 190 µA |
| PSRR | 70dB ~ 65dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 8-VFDFN Exposed Pad, 8-MLF® |
| Supplier Device Package | 8-MLF® (2x2) |
The MIC5310-SGYML-TR is a dual-output low dropout regulator from Microchip Technology, offering 1.8V and 3.3V at up to 150mA per channel. With an ultra-low dropout of 0.1V at full load and 120µA quiescent current, it is optimized for battery-powered applications. The 8-MLF package provides excellent thermal dissipation in a compact 2x2mm footprint.
- Dual Rail Flexibility: 1.8V and 3.3V outputs cover common digital and analog requirements.
- Superior PSRR: 70dB at 1kHz ensures minimal noise coupling from input supply.
- Ultra-Low Dropout: 0.1V at 150mA maximizes usable battery capacity.
- Compact MLF Package: 2x2mm size with exposed pad for thermal management.
FPGA Power Supplies
The 1.8V rail can power core logic while the 3.3V rail powers I/O banks, providing a complete solution for small FPGAs in portable devices.
Smartphone Accessories
Dual outputs for digital (1.8V) and analog (3.3V) sections in accessories like external DACs or camera grips, with low dropout for battery operation.
Embedded Systems
Microcontrollers often need 1.8V for core and 3.3V for peripherals. This LDO simplifies the power tree in IoT modules.
Portable Audio Players
The 3.3V rail powers the audio codec while 1.8V powers the digital controller, with PSRR of 70dB at 1kHz for clean audio.
Wireless Sensor Networks
Low 120µA quiescent current extends battery life in nodes that sleep most of the time, while dual rails support sensor and radio.
Test and Measurement
Provides stable dual rails for precision analog circuits and digital logic in handheld multimeters or oscilloscopes.
- Q: What are the output voltages of the MIC5310-SGYML-TR?
- A: This dual LDO provides two outputs: 1.8V and 3.3V.
- Q: What is the maximum current per output?
- A: Each output can supply up to 150mA, suitable for low-power dual-rail systems.
- Q: What is the input voltage range?
- A: The input voltage range is typically 2.5V to 5.5V for this series.
- Q: What is the dropout voltage?
- A: The dropout voltage is very low at 0.1V at 150mA per channel.
- Q: What is the quiescent current?
- A: The quiescent current is 120µA, helping to preserve battery life.
- Q: What package is available?
- A: It is available in an 8-MLF® (2x2mm) package with excellent thermal performance.
