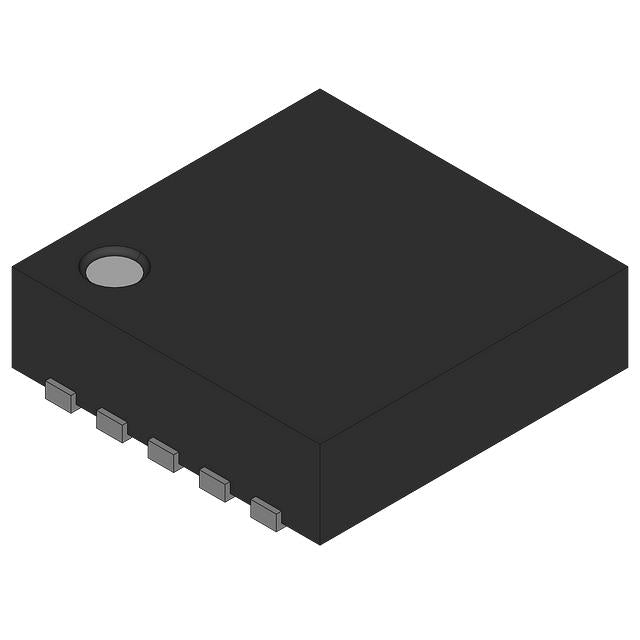

Micrel Inc. MIC5311-GMYML
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.32 | $3.32 |
| 15+ | $0.76 | $11.40 |
| 25+ | $0.75 | $18.75 |
| 50+ | $0.71 | $35.50 |
| 100+ | $0.62 | $62.00 |
| N+ | $0.12 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Micrel Inc. |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 2 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 2.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.24V @ 300mA, 0.24V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 50 µA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 35dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-VFDFN Exposed Pad, 10-MLF® |
| Supplier Device Package | 10-MLF® (3x3) |
The MIC5311-GMYML from Micrel is a dual-output LDO linear regulator designed for applications requiring two independent voltage rails. It provides fixed 1.8V and 2.8V outputs, each capable of sourcing up to 300mA. With a low dropout voltage of 0.24V at full load and a quiescent current of 50 µA, it offers excellent efficiency for battery-powered devices. The regulator features high PSRR (65dB at 1kHz), making it suitable for noise-sensitive RF and analog circuits. Housed in a compact 10-MLF package, it is ideal for space-constrained designs.
- Dual Outputs in One Package: Provides 1.8V and 2.8V rails, reducing component count and PCB area.
- High PSRR: 65dB at 1kHz ensures clean power for sensitive RF and audio circuits.
- Low Dropout: 0.24V at 300mA maximizes efficiency in battery-powered systems.
- Low Quiescent Current: 50 µA quiescent current extends battery life in portable devices.
Dual-Rail Power for Mixed-Signal ICs
Provides separate 1.8V and 2.8V rails for mixed-signal devices like codecs and ADCs, ensuring isolation between digital and analog sections.
Smartphone Camera Modules
Powers the image sensor (1.8V) and actuator driver (2.8V) from a single LDO, saving space and simplifying power management.
Portable Media Players
The dual outputs can power a 1.8V DSP core and 2.8V analog audio circuitry, reducing component count.
Wireless Modules
Supplies 1.8V for logic and 2.8V for RF front-end, with high PSRR (65dB at 1kHz) to minimize noise coupling.
Battery-Powered Industrial Sensors
The 50 µA quiescent current and dual outputs make it ideal for powering sensor signal chains and microcontrollers.
Compact IoT Devices
The 10-MLF package integrates two regulators in a small footprint, perfect for space-constrained IoT nodes.
- Q: What are the output voltages of the MIC5311-GMYML?
- A: This is a dual-output LDO providing fixed 1.8V and 2.8V outputs.
- Q: What is the maximum output current per channel?
- A: Each output can deliver up to 300mA, with a total of 300mA per channel.
- Q: What is the input voltage range?
- A: The input voltage range is not fully specified in the provided data; refer to the datasheet for details.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.24V at 300mA for both outputs.
- Q: What is the quiescent current?
- A: The quiescent current is 50 µA.
- Q: What is the PSRR performance?
- A: The power supply rejection ratio is 65dB at 1kHz and 35dB at 20kHz.
- Q: What are the output voltages of the MIC5311-GMYML?
- A: This is a dual-output LDO providing fixed 1.8V and 2.8V outputs.
- Q: What is the maximum output current per channel?
- A: Each output can deliver up to 300mA, with a total of 300mA per channel.
- Q: What is the input voltage range?
- A: The input voltage range is not fully specified in the provided data; refer to the datasheet for details.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.24V at 300mA for both outputs.
- Q: What is the quiescent current?
- A: The quiescent current is 50 µA.
- Q: What is the PSRR performance?
- A: The power supply rejection ratio is 65dB at 1kHz and 35dB at 20kHz.
