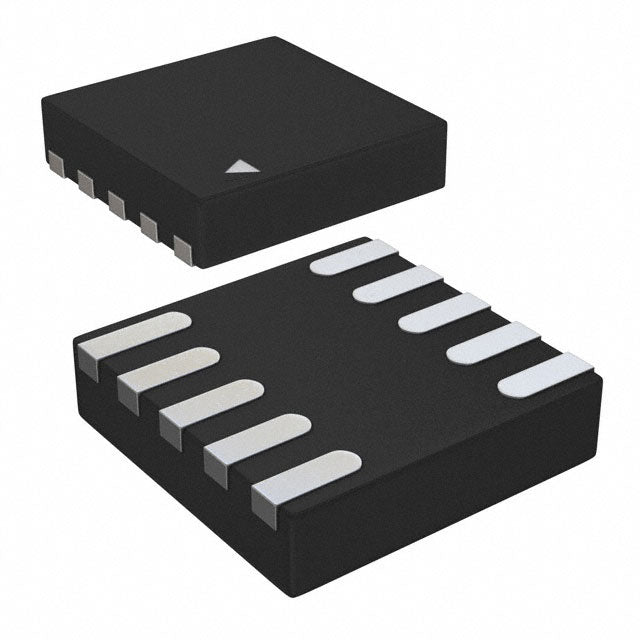

Microchip Technology MIC5315-GGCYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V/1.8V, 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 μA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN, 10-TMLF? |
| Supplier Device Package | 10-TMLF? (2x2) |
| ROHS |  |
The Microchip MIC5315-GGCYMT-TR is a dual-output LDO regulator providing fixed 1.0V and 1.8V rails, each capable of 300mA. With a low 0.2V dropout at full load and 12 μA quiescent current, it offers excellent efficiency for battery-powered devices. The compact 10-TMLF package is ideal for space-constrained designs.
- Dual Outputs: Provides two independent regulated rails (1.0V and 1.8V) in a single package, saving board space.
- High Current Capability: 300mA per channel supports demanding loads like FPGAs and RF transceivers.
- Low Dropout: 0.2V at 300mA ensures efficient operation with minimal headroom.
- Good Noise Performance: 65dB to 40dB PSRR across 1kHz to 20kHz filters wideband noise.
Dual-Rail FPGA/CPLD Power
Provides both 1.0V core and 1.8V I/O supplies from a single LDO, simplifying power distribution in programmable logic devices.
Smartphone Camera Modules
The dual outputs can power image sensors (1.8V) and lens actuators (1.0V), with low dropout ensuring stable operation from a 3.3V rail.
Portable Audio Codecs
Delivers clean 1.8V for analog audio and 1.0V for digital core, with 65dB PSRR at 1kHz reducing audible noise.
Wireless Transceivers
Powers RF transceivers requiring separate 1.8V and 1.0V rails, with 300mA per channel supporting peak transmit currents.
Battery-Powered Medical Devices
The 12 μA quiescent current and dual outputs make it ideal for compact glucose meters and hearing aids.
Multi-Voltage Sensor Hubs
Provides stable rails for mixed-voltage sensors and microcontrollers in IoT edge devices.
- Q: What is the output voltage of the MIC5315-GGCYMT-TR?
- A: It has dual outputs: 1.0V and 1.8V.
- Q: What is the maximum output current per channel?
- A: Each channel can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA for both channels.
- Q: What is the quiescent current?
- A: The quiescent current is 12 μA.
- Q: What package is available?
- A: It comes in a 10-TMLF package (2x2mm).
