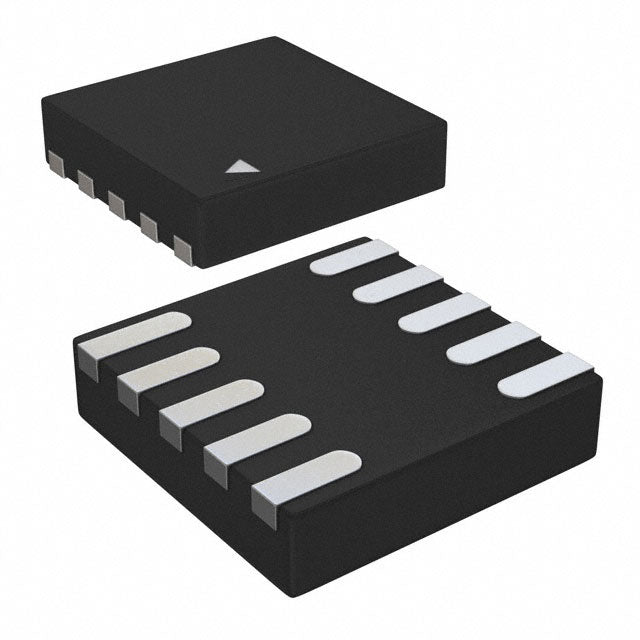

Microchip Technology MIC5315-GW3YMT-TR
Regular price
$94,999.99
Regular price
$99,999.99
Sale price
$94,999.99
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $94,999.99 | $94,999.99 |
| 15+ | $91,999.99 | $1,379,999.85 |
| 25+ | $89,999.99 | $2,249,999.75 |
| 50+ | $84,999.99 | $4,249,999.50 |
| 100+ | $74,999.99 | $7,499,999.00 |
| N+ | $15,000.00 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.1V/1.6V, 1.8V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 μA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 10-UFDFN, 10-TMLF? |
| Supplier Device Package | 10-TMLF? (2x2) |
| ROHS |  |
The Microchip MIC5315-GW3YMT-TR is a dual-output LDO delivering fixed 1.1V and 1.6V rails, each rated at 300mA. Its 12 μA quiescent current and 0.2V dropout make it highly efficient for battery-powered applications. The 10-TMLF package offers a compact solution for multi-voltage designs.
- Dual Independent Rails: 1.1V and 1.6V outputs simplify multi-voltage power design.
- High Efficiency: 0.2V dropout at 300mA reduces power loss.
- Low Standby Power: 12 μA quiescent current extends battery life.
- Small Form Factor: 2x2 TMLF package ideal for miniaturized electronics.
Multi-Rail DSP Systems
Dual 1.1V and 1.6V outputs power DSP cores and I/O, ensuring stable operation in signal processing.
Advanced Wearable Electronics
Compact 2x2 package and low quiescent current suit smartwatches and fitness trackers.
Portable Gaming Consoles
300mA per channel supports processor and display logic with minimal heat generation.
Wireless Sensor Networks
Low dropout and high efficiency extend node battery life in industrial monitoring.
Medical Implantable Devices
Reliable dual outputs with low power consumption meet strict energy budgets.
- Q: What are the output voltages of the MIC5315-GW3YMT-TR?
- A: It provides dual fixed outputs: 1.1V and 1.6V.
- Q: What is the maximum output current per channel?
- A: Each channel can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA for both channels.
- Q: What is the quiescent current?
- A: The quiescent current is 12 μA.
- Q: What package is available?
- A: It comes in a 10-TMLF (2x2) package.
Base Product Number ：
MIC5315-GW3YMT
MIC5315-GW3YMT-TR.pdf
