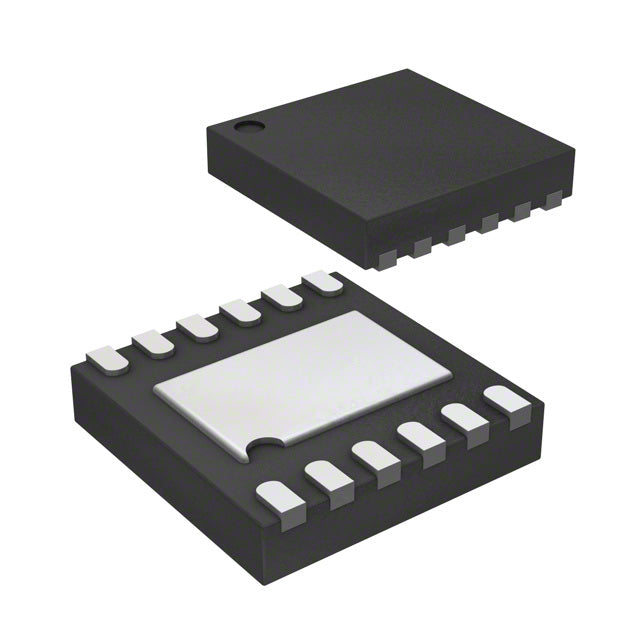

Microchip Technology MIC5316-F5CYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.96 | $1.96 |
| 15+ | $0.45 | $6.75 |
| 25+ | $0.44 | $11.00 |
| 50+ | $0.42 | $21.00 |
| 100+ | $0.37 | $37.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V, 1.5V |
| Voltage - Output (Max) | 1.3V |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 μA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad, 12-TMLF? |
| Supplier Device Package | 12-TMLF? (2.5x2.5) |
| ROHS |  |
The MIC5316-F5CYMT-TR from Microchip Technology is a dual-output fixed 1.3V low dropout linear regulator, each channel delivering up to 300mA. With an ultra-low quiescent current of 12 μA and a dropout voltage of 0.2V at full load, it is engineered for battery-powered and energy-efficient applications. The device offers excellent PSRR of 65dB at 1kHz, reducing supply noise for sensitive RF and analog circuits. Housed in a compact 12-TMLF (2.5x2.5) package, it provides two independent regulated rails for multi-domain designs.
- Dual outputs: Two 300mA channels provide independent power domains in a single package.
- Ultra-low quiescent current: 12 μA significantly extends battery life in portable devices.
- Low dropout: 0.2V at 300mA ensures efficient operation with minimal headroom.
- High PSRR: 65dB at 1kHz reduces noise for RF and analog circuits.
- Compact footprint: 12-TMLF (2.5x2.5) saves space in miniaturized designs.
Dual-Rail Power for Mobile Processors
The dual 300mA outputs with 1.3V fixed voltage are ideal for powering separate core and I/O domains in application processors, reducing cross-talk and improving stability.
Ultra-Low-Power Wearables
With a quiescent current of only 12 μA, this LDO is perfect for always-on sensor hubs and Bluetooth LE modules, maximizing battery life in compact wearables.
Noise-Sensitive RF Front-Ends
The PSRR of 65dB at 1kHz (decreasing to 40dB at 20kHz) helps filter high-frequency noise, making it suitable for powering RF transceivers and VCOs.
Portable Medical Devices
The low dropout of 0.2V at 300mA ensures reliable operation from a single Li-ion cell, even as the battery discharges, supporting continuous monitoring devices.
Multi-Channel Sensor Systems
Two independent regulated outputs allow separate power domains for analog sensors and digital interfaces, minimizing interference in data acquisition systems.
Compact IoT Modules
The 12-TMLF (2.5x2.5) package is ideal for space-constrained IoT modules, providing dual regulated rails in a tiny footprint.
- Q: What is the output voltage of the MIC5316-F5CYMT-TR?
- A: The output voltage is fixed at 1.3V.
- Q: What is the maximum output current?
- A: The device provides two outputs, each rated at 300mA.
- Q: What is the input voltage range?
- A: The input voltage is specified as 1V and 1.5V for the two channels.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA for each output.
- Q: What is the quiescent current?
- A: The quiescent current is 12 μA.
- Q: What package is available?
- A: The device is available in a 12-TMLF (2.5x2.5) package.
