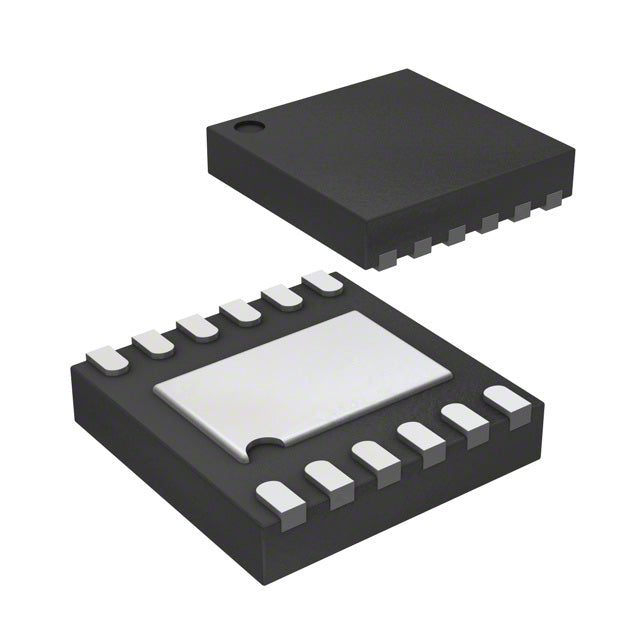

Microchip Technology MIC5316-GGCYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.61 | $0.61 |
| 15+ | $0.59 | $8.85 |
| 25+ | $0.58 | $14.50 |
| 50+ | $0.54 | $27.00 |
| 100+ | $0.48 | $48.00 |
| N+ | $0.10 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1V, 1.8V |
| Voltage - Output (Max) | 1.8V |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 μA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad, 12-TMLF? |
| Supplier Device Package | 12-TMLF? (2.5x2.5) |
| ROHS |  |
The Microchip MIC5316-GGCYMT-TR is a dual-output low dropout linear regulator delivering 300mA per channel at a fixed 1.8V. Housed in a compact 12-TMLF package, it operates from an input voltage range of 1V to 1.8V, making it perfect for low-voltage battery applications. With a dropout of just 0.2V at full load and excellent PSRR performance, this regulator ensures clean, stable power for sensitive analog and RF circuits. The 12 μA quiescent current per channel helps preserve battery life in portable devices.
- Dual Outputs: Two independent 300mA rails in one package reduce component count and PCB area.
- High PSRR: 65dB to 40dB rejection (1kHz-20kHz) minimizes supply noise for RF and audio circuits.
- Low Dropout: 0.2V dropout at 300mA enables efficient operation with minimal input-output headroom.
- Compact Footprint: 2.5x2.5mm TMLF package is ideal for space-constrained designs.
Dual-Rail Microcontroller Power
With two independent 300mA outputs, this LDO can power both the core and I/O rails of a microcontroller from a single input, simplifying power design.
RF Transceiver Supply
The high PSRR of 65dB to 40dB (1kHz to 20kHz) ensures clean power for RF transceivers, reducing noise interference in wireless communication.
Portable Audio Devices
Low dropout and dual outputs make it suitable for powering audio codecs and amplifiers in portable media players, maintaining audio fidelity.
FPGA Auxiliary Rails
For FPGAs requiring multiple low-voltage supplies, this dual LDO provides a compact solution for auxiliary rails with minimal noise.
Sensor Arrays
Power multiple sensors with independent regulated rails, ensuring stable operation for analog sensor readings in industrial IoT devices.
Battery-Powered Handhelds
The low quiescent current and small package make it ideal for handheld devices where battery life and space are critical.
- Q: What is the output voltage of the MIC5316-GGCYMT-TR?
- A: The output voltage is fixed at 1.8V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA per channel, with two channels available.
- Q: What is the input voltage range?
- A: The input voltage range is from 1V to 1.8V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA per channel.
- Q: What is the quiescent current?
- A: The quiescent current is 12 μA per channel.
- Q: What package is this LDO available in?
- A: It is available in a 12-TMLF package measuring 2.5x2.5mm.
