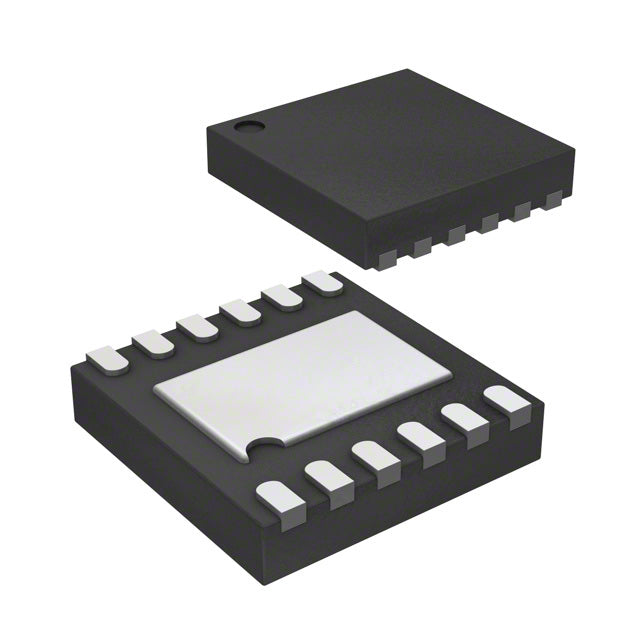

Microchip Technology MIC5316-GW3YMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $1.96 | $1.96 |
| 15+ | $0.45 | $6.75 |
| 25+ | $0.44 | $11.00 |
| 50+ | $0.42 | $21.00 |
| 100+ | $0.37 | $37.00 |
| N+ | $0.07 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.1V, 1.8V |
| Voltage - Output (Max) | 1.6V |
| Voltage Dropout (Max) | 0.2V @ 300mA, 0.2V @ 300mA |
| Current - Output | 300mA, 300mA |
| Current - Quiescent (Iq) | 12 μA |
| Current - Supply (Max) | - |
| PSRR | 65dB ~ 40dB (1kHz ~ 20kHz) |
| Control Features | Enable, Power On Reset |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 12-UFDFN Exposed Pad, 12-TMLF? |
| Supplier Device Package | 12-TMLF? (2.5x2.5) |
| ROHS |  |
The Microchip MIC5316-GW3YMT-TR is a dual-output, fixed 1.6V LDO regulator designed for low-voltage, high-efficiency applications. Each output can source up to 300mA, making it ideal for powering dual-core processors, FPGAs, or multiple peripheral devices. With a low quiescent current of 12 μA and a compact 12-TMLF package, it is an excellent choice for portable and battery-powered electronics.
- Dual 300mA Outputs: Provides two independent regulated rails, simplifying multi-voltage system design.
- Ultra-Low Quiescent Current: The 12 μA quiescent current significantly reduces power consumption in standby mode.
- Low Dropout Voltage: The 0.2V dropout at 300mA ensures high efficiency even with low input voltages.
- Compact 12-TMLF Package: The tiny 2.5x2.5mm footprint saves valuable board space in portable devices.
Dual-Rail Power Supply
Provides two independent 1.6V rails from a single IC, ideal for powering separate digital cores or analog circuits in complex SoCs.
FPGA and CPLD Core Power
Delivers the low-voltage core supply required by modern FPGAs and CPLDs, with each 300mA output supporting multiple power pins.
Portable Multimedia Devices
Its low quiescent current and small package make it perfect for smartphones, tablets, and portable media players.
Low-Voltage DSP Systems
Provides clean, stable power for DSPs operating at 1.6V, ensuring reliable high-speed signal processing.
Battery-Powered Wearables
The 12 μA quiescent current and compact 2.5x2.5mm package are ideal for power-constrained wearable devices.
Multi-Channel Sensor Systems
Can power two separate sensor chains with independent regulation, reducing cross-talk and improving accuracy.
- Q: What is the output voltage?
- A: The MIC5316-GW3YMT-TR has a fixed output voltage of 1.6V.
- Q: What is the maximum output current?
- A: This is a dual-output LDO, with each output capable of delivering 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is from 1.1V to 1.8V.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA for each output.
- Q: What is the quiescent current?
- A: The quiescent current is a low 12 μA.
- Q: What package is this available in?
- A: It is available in a 12-TMLF package (2.5x2.5mm).
