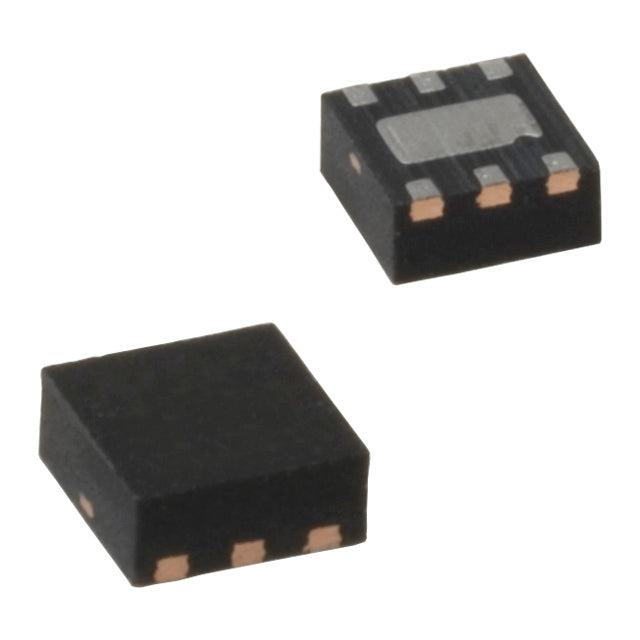

Microchip Technology MIC5318-2.5YMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.84 | $0.84 |
| 15+ | $0.81 | $12.15 |
| 25+ | $0.79 | $19.75 |
| 50+ | $0.75 | $37.50 |
| 100+ | $0.66 | $66.00 |
| N+ | $0.13 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Cut Tape (CT) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF? |
| Supplier Device Package | 6-TMLF? (1.6x1.6) |
| ROHS |  |
The MIC5318-2.5YMT-TR from Microchip Technology is a fixed 2.5V low dropout linear regulator delivering up to 300mA. Its 150 μA quiescent current and high PSRR (75dB at 1kHz) make it suitable for noise-sensitive portable applications. The compact 6-TMLF package (1.6x1.6mm) enables space-efficient designs.
- Extended Battery Life: 150 μA quiescent current minimizes standby drain in portable devices.
- Clean Output: 75dB PSRR at 1kHz suppresses ripple from switching supplies.
- Space-Saving: 1.6x1.6mm 6-TMLF package fits tight PCB layouts.
- Stable 2.5V Rail: Fixed output ensures accuracy for logic and analog circuits.
Portable Battery-Powered Devices
The low 150 μA quiescent current extends battery life in wearables, IoT sensors, and handheld instruments where standby power is critical.
RF and Analog Front-Ends
With 75dB PSRR at 1kHz, this LDO provides a clean 2.5V rail for sensitive analog and RF circuits, minimizing noise coupling from switching regulators.
Compact Sensor Modules
The 1.6x1.6mm 6-TMLF package fits space-constrained designs like optical sensors, MEMS modules, and medical patches.
Low-Power Microcontrollers
Delivering up to 300mA, it reliably powers MCUs and wireless SoCs during active transmit bursts while maintaining stable 2.5V output.
Audio Codec Supplies
High PSRR across 1-20kHz reduces power supply induced noise in audio codecs and amplifiers, improving signal-to-noise ratio.
Always-On Domains
Ultra-low quiescent current makes it ideal for always-on memory, RTC, and wake-up logic in smart home devices.
- Q: What is the fixed output voltage of the MIC5318-2.5YMT-TR?
- A: The output voltage is fixed at 2.5V.
- Q: What is the maximum output current?
- A: The maximum output current is 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; please refer to the datasheet.
- Q: What is the quiescent current?
- A: The quiescent current is 150 μA.
- Q: What package is available?
- A: It comes in a 6-TMLF package (1.6x1.6 mm).
- Q: What is the PSRR performance?
- A: PSRR is 75dB to 55dB from 1kHz to 20kHz.
