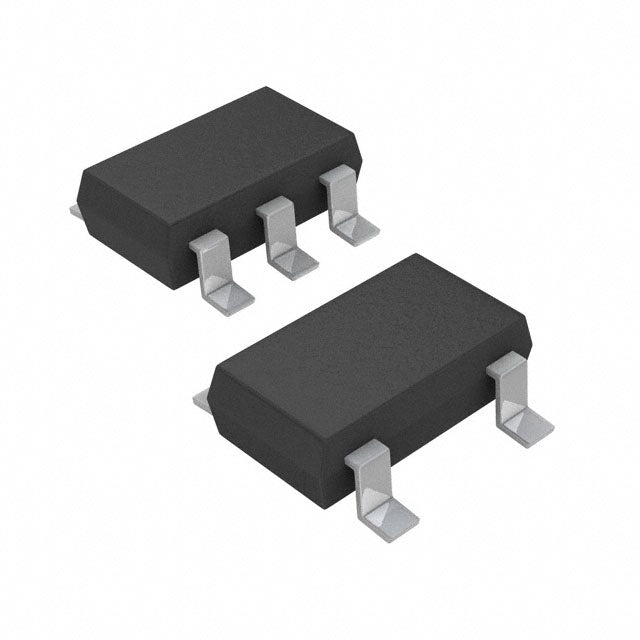

Microchip Technology MIC5318-2.6YD5-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.56 | $0.56 |
| 15+ | $0.13 | $1.95 |
| 25+ | $0.13 | $3.25 |
| 50+ | $0.12 | $6.00 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MIC5318 from Microchip Technology is a 300mA low dropout linear regulator offering a fixed 2.6V output. With a low quiescent current of 150 µA and PSRR up to 75dB, it ensures clean and efficient power delivery. Available in a TSOT-23-5 package, it balances performance with design flexibility.
- Stable 2.6V Output: Ideal for mixed-signal and RF applications.
- Low Quiescent Current: 150 µA reduces standby power in battery devices.
- High PSRR: 75dB at 1kHz filters supply noise effectively.
- Versatile Package: TSOT-23-5 is easy to solder and widely used.
Portable Audio Players
The 2.6V output with high PSRR ensures clean power for audio DACs and amplifiers, reducing audible noise.
Battery-Powered Instruments
150 µA quiescent current helps preserve battery charge in handheld multimeters and field sensors.
Wireless Peripherals
Stable 2.6V rail supports Bluetooth modules and wireless mice, ensuring reliable RF performance.
Industrial Control Systems
TSOT-23-5 package allows easy integration into industrial PCBs while providing 300mA load capability.
Consumer Wearables
Compact package and low power consumption make it suitable for smart bands and health monitors.
Embedded Systems
Provides a stable 2.6V supply for mixed-signal microcontrollers and peripheral ICs.
- Q: What is the output voltage of the MIC5318-2.6YD5-TR?
- A: The fixed output voltage is 2.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage must be above 2.6V plus the dropout voltage (not specified in provided data).
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What is the PSRR performance?
- A: PSRR is 75dB at 1kHz and 55dB at 20kHz.
- Q: What package is available?
- A: It comes in a TSOT-23-5 package.
