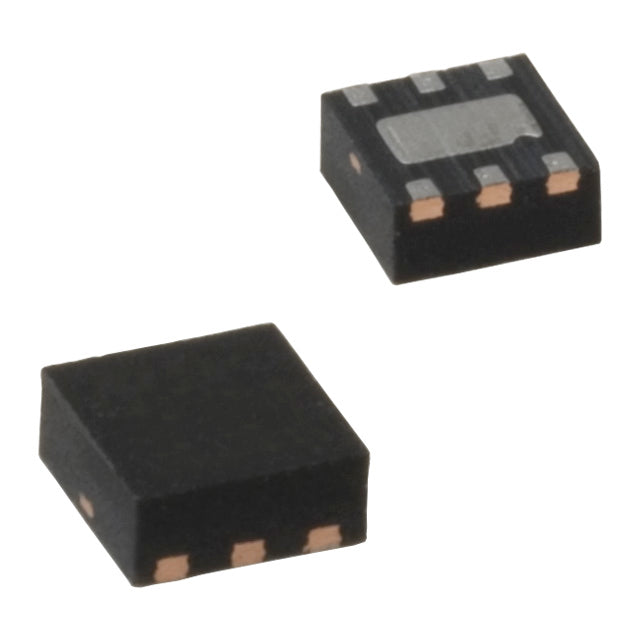

Microchip Technology MIC5318-2.6YMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.56 | $0.56 |
| 15+ | $0.13 | $1.95 |
| 25+ | $0.13 | $3.25 |
| 50+ | $0.12 | $6.00 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.6V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | - |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| ROHS |  |
The MIC5318 from Microchip Technology is a 300mA low dropout regulator with a fixed 2.6V output. Its 150 µA quiescent current and 75dB PSRR make it an excellent choice for battery-powered and noise-sensitive applications. The 6-TMLF® package offers a compact solution for space-constrained designs.
- Ultra-Low Quiescent Current: 150 µA for extended battery life.
- High Noise Rejection: 75dB PSRR at 1kHz for clean output.
- Compact Footprint: 1.6x1.6mm TMLF package saves space.
- Robust 300mA Output: Suitable for a wide range of loads.
Compact Wireless Modules
The 2.6V output and high PSRR make it ideal for Wi-Fi and BLE modules requiring clean power.
Battery-Operated Cameras
150 µA quiescent current extends standby time in security and action cameras.
Precision Analog Circuits
75dB PSRR at 1kHz ensures stable voltage for op-amps and ADCs in measurement equipment.
Portable Gaming Devices
300mA capability supports processors and displays while maintaining low noise.
Medical Monitoring Devices
Reliable 2.6V rail for glucose monitors and pulse oximeters, ensuring consistent operation.
Smart Home Sensors
Compact TMLF package fits into small sensor nodes for home automation.
- Q: What is the output voltage of the MIC5318-2.6YMT-TR?
- A: The fixed output voltage is 2.6V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage must be above 2.6V plus the dropout voltage (not specified in provided data).
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What is the PSRR performance?
- A: PSRR is 75dB at 1kHz and 55dB at 20kHz.
- Q: What package is available?
- A: It comes in a 6-TMLF® (1.6x1.6) package.
