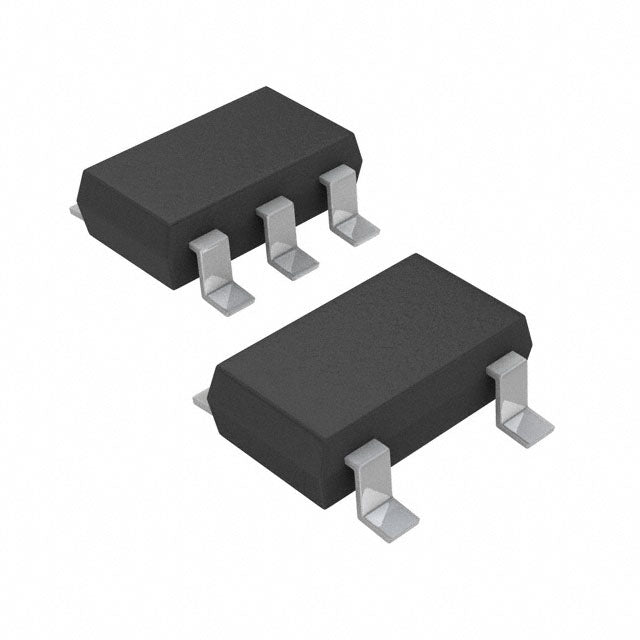

Microchip Technology MIC5318-2.85YD5-TR
Regular price
$0.56
Regular price
$0.14
Sale price
$0.56
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.56 | $0.56 |
| 15+ | $0.13 | $1.95 |
| 25+ | $0.13 | $3.25 |
| 50+ | $0.12 | $6.00 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.85V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SOT-23-5 Thin, TSOT-23-5 |
| Supplier Device Package | TSOT-23-5 |
| ROHS |  |
The MIC5318-2.85YD5-TR from Microchip Technology is a 300mA LDO with fixed 2.85V output. Featuring a low 0.2V dropout at full load and 150µA quiescent current, it delivers efficient, clean power in a TSOT-23-5 package.
- Low 0.2V dropout at 300mA – maintains regulation with minimal input-output differential.
- 150µA quiescent current – ideal for battery-powered applications.
- High PSRR (75dB at 1kHz) – rejects supply noise for sensitive loads.
- TSOT-23-5 package – compact and easy to assemble.
DDR Memory Termination
2.85V output with 0.2V dropout suits DDR bus termination, maintaining tight voltage tolerance.
Portable GPS Receivers
Low quiescent current and high PSRR improve GPS signal acquisition in battery devices.
Wireless Charging Controllers
Provides stable 2.85V for control logic, with thermal shutdown for safe operation.
Smart Home Hubs
Regulates power for Zigbee/Wi-Fi modules, ensuring reliable communication.
Battery Management ICs
Low dropout allows operation from nearly discharged batteries, extending usable capacity.
Industrial Handhelds
TSOT-23-5 package and 300mA output support rugged portable terminals.
- Q: What is the output voltage?
- A: Fixed 2.85V.
- Q: What is the maximum current?
- A: 300mA.
- Q: What is the input voltage range?
- A: Not specified in the provided data.
- Q: What is the dropout voltage?
- A: 0.2V at 300mA.
- Q: What is the quiescent current?
- A: 150 µA.
- Q: What package is available?
- A: TSOT-23-5.
Base Product Number ：
MIC5318-2.85YD5
MIC5318-2.85YD5-TR.pdf
