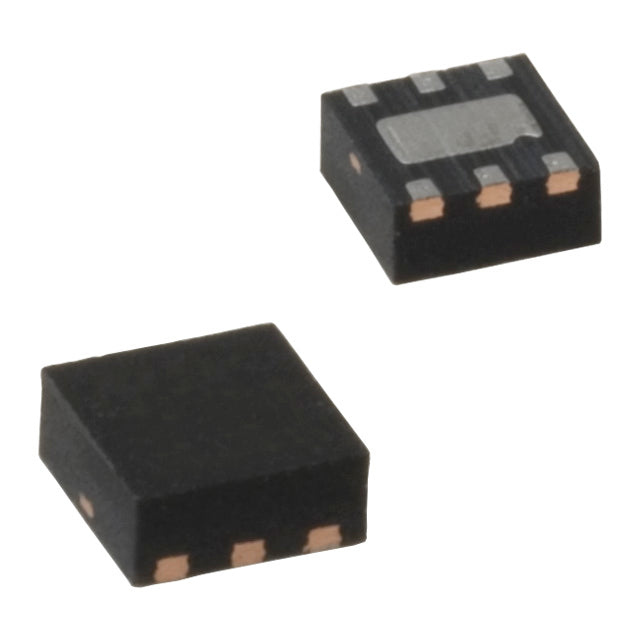

Microchip Technology MIC5318-2.9YMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.56 | $0.56 |
| 15+ | $0.13 | $1.95 |
| 25+ | $0.13 | $3.25 |
| 50+ | $0.12 | $6.00 |
| 100+ | $0.11 | $11.00 |
| N+ | $0.02 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 2.9V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.2V @ 300mA |
| Current - Output | 300mA |
| Current - Quiescent (Iq) | 150 µA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 55dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF® |
| Supplier Device Package | 6-TMLF® (1.6x1.6) |
| ROHS |  |
The MIC5318-2.9YMT-TR is a low dropout linear regulator from Microchip Technology, providing a fixed 2.9V output at up to 300mA. Its 150 µA quiescent current and 0.2V dropout voltage ensure high efficiency in battery-powered applications. The regulator offers excellent PSRR of 75dB at 1kHz, making it suitable for noise-sensitive circuits. The ultra-small 6-TMLF® package (1.6x1.6mm) is ideal for compact portable devices.
- Ultra-Compact Size: 6-TMLF® package (1.6x1.6mm) enables miniaturized designs for wearables and IoT devices.
- Low Power Consumption: 150 µA quiescent current significantly extends battery life in standby and active modes.
- Superior Noise Rejection: 75dB PSRR at 1kHz provides clean power for precision analog and RF circuits.
- Minimal Voltage Loss: 0.2V dropout at 300mA ensures efficient operation even with low input voltages.
Wearable Health Monitors
The ultra-compact 6-TMLF® package (1.6x1.6mm) is perfect for fitness bands and medical patches where board space is at a premium, while 150 µA quiescent current extends battery life.
Wireless Sensor Nodes
Low dropout of 0.2V allows operation from nearly depleted batteries, maximizing the operational lifetime of remote sensors in IoT networks.
Portable Audio Equipment
High PSRR (75dB at 1kHz) ensures clean power for audio codecs and amplifiers, minimizing hum and noise in portable music players.
Smartphone Peripheral ICs
The small footprint and 300mA capability make it suitable for powering camera modules, display drivers, and other peripherals in mobile devices.
Embedded Systems with Mixed-Signal ICs
Stable 2.9V rail with excellent noise rejection supports mixed-signal processors and data converters in compact embedded designs.
Battery Management Circuits
Low quiescent current and precise output voltage make it ideal for powering monitoring circuits in battery management systems.
- Q: What is the output voltage of the MIC5318-2.9YMT-TR?
- A: The fixed output voltage is 2.9V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: This model comes in a 6-TMLF® (1.6x1.6) package.
MIC5318-2.9YMT-TR.pdf
- Q: What is the output voltage of the MIC5318-2.9YMT-TR?
- A: The fixed output voltage is 2.9V.
- Q: What is the maximum output current?
- A: It can deliver up to 300mA.
- Q: What is the input voltage range?
- A: The input voltage range is not explicitly specified in the provided data; refer to the datasheet for full specifications.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.2V at 300mA load.
- Q: What is the quiescent current?
- A: The quiescent current is 150 µA.
- Q: What package is available?
- A: This model comes in a 6-TMLF® (1.6x1.6) package.
