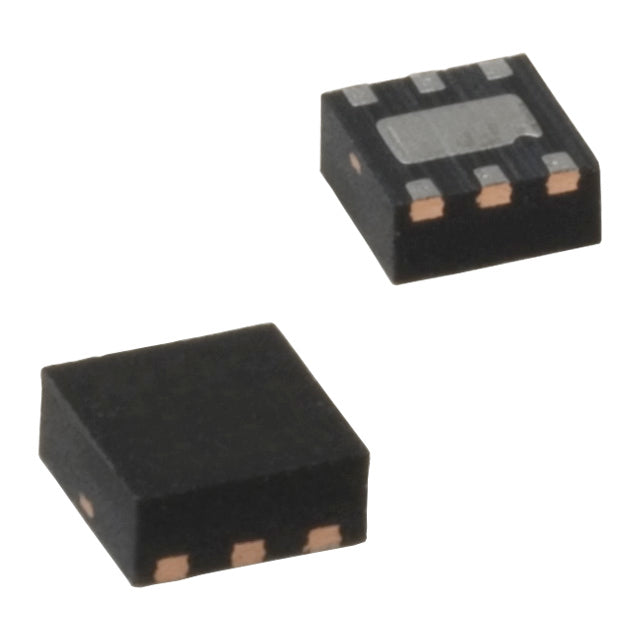

Microchip Technology MIC5321-JGYMT-TR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $3.90 | $3.90 |
| 15+ | $0.90 | $13.50 |
| 25+ | $0.88 | $22.00 |
| 50+ | $0.83 | $41.50 |
| 100+ | $0.74 | $74.00 |
| N+ | $0.15 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Tape & Reel (TR) | |
| Output Configuration | Active |
| Output Type | Positive |
| Number of Regulators | Fixed |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.8V, 2.5V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.1V @ 150mA, 0.1V @ 150mA |
| Current - Output | 150mA, 150mA |
| Current - Quiescent (Iq) | 190 μA |
| Current - Supply (Max) | - |
| PSRR | 75dB ~ 45dB (1kHz ~ 20kHz) |
| Control Features | Enable |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 6-UFDFN Exposed Pad, 6-TMLF? |
| Supplier Device Package | 6-TMLF? (1.6x1.6) |
| ROHS |  |
The MIC5321-JGYMT-TR is a dual-output LDO from Microchip Technology, delivering fixed 1.8V and 2.5V rails with 150mA per channel. Its ultra-low dropout of 0.1V and quiescent current of 190 µA make it highly efficient for battery-powered applications. The 6-TMLF package and PSRR of 75dB ensure clean, stable power in a minimal footprint.
- Versatile Dual Outputs: 1.8V and 2.5V rails support a wide range of digital and analog ICs.
- Ultra-Low Dropout: 0.1V at 150mA maximizes efficiency and extends battery life.
- High PSRR: 75dB at 1kHz provides excellent noise filtering for sensitive circuits.
- Compact Design: 1.6x1.6mm TMLF package fits into space-constrained PCBs.
Mixed-Signal Microcontrollers
The 1.8V rail powers digital logic while 2.5V supports analog peripherals, providing clean, stable power with 150mA per channel for MCU-based designs.
Portable Audio Players
With PSRR of 75dB at 1kHz, this LDO ensures noise-free power for audio DACs and amplifiers, enhancing sound quality in compact devices.
Smart Home Sensors
Low quiescent current of 190 µA and tiny package make it ideal for battery-powered temperature, humidity, and motion sensors.
Industrial IoT Gateways
Provides reliable dual-rail power for processors and communication interfaces, with low dropout to handle varying input conditions.
Medical Wearables
Stable 1.8V and 2.5V outputs power biosignal processing circuits, ensuring accurate monitoring in compact, low-power devices.
Embedded Vision Systems
Powers image sensors at 2.5V and processing logic at 1.8V, maintaining signal integrity with excellent noise rejection.
- Q: What output voltages does the MIC5321-JGYMT-TR provide?
- A: It provides fixed outputs of 1.8V and 2.5V.
- Q: What is the maximum output current?
- A: Each channel can deliver up to 150mA, suitable for low-power applications.
- Q: What is the input voltage range?
- A: The input voltage should be 1.8V and 2.5V respectively, matching the output rails.
- Q: What is the dropout voltage?
- A: Dropout is very low at 0.1V at 150mA, allowing efficient operation with minimal headroom.
- Q: What is the quiescent current?
- A: The quiescent current is 190 µA, helping to preserve battery life in portable devices.
- Q: What package is available?
- A: It comes in a compact 6-TMLF (1.6x1.6mm) package.
