Micrel Inc. MIC69151-1.8YML

Skip to product information
1 of 1

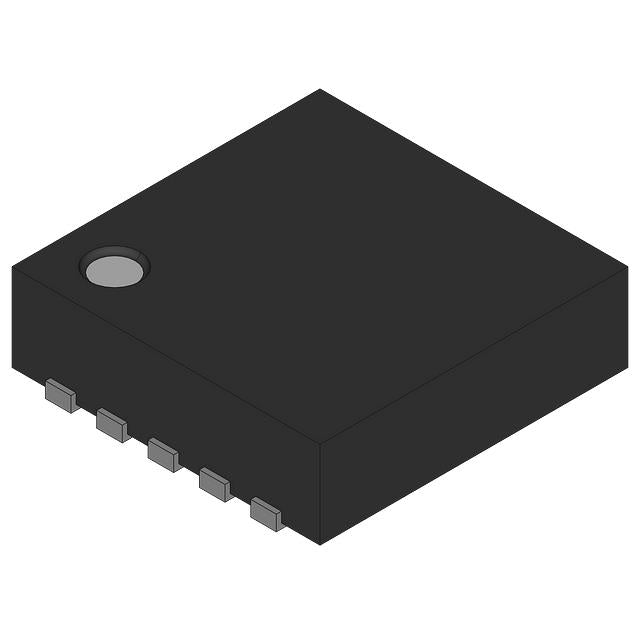

Image shown is a representation only. Exact specifications should be obtained from the product data sheet.
Regular price $3.88
Regular price $0.97 Sale price $3.88
Sale Sold out
Quantity Unit Price Total Price
1 $3.88 $3.88
15+ $0.89 $13.35
25+ $0.87 $21.75
50+ $0.82 $41.00
100+ $0.73 $73.00
N+ $0.15 Price Inquiry
Shipping calculated at checkout.
Quantity
Component Recycling

Request Quote / Inquiry

Product attributes Property Value
Manufacturer Micrel Inc.
Product Series
Packaging Bulk |
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 5.5V
Voltage - Output (Min/Fixed) 1.8V
Voltage - Output (Max) -
Voltage Dropout (Max) 0.5V @ 1.5A
Current - Output 1.5A
Current - Quiescent (Iq) 20 mA
Current - Supply (Max) 35 mA
PSRR -
Control Features Enable
Protection Features Over Current, Over Temperature
Operating Temperature -40°C ~ 125°C
Grade -
Qualification -
Mounting Type Surface Mount
Package / Case 10-VFDFN Exposed Pad, 10-MLF®
Supplier Device Package 10-MLF® (3x3)

The MIC69151-1.8YML from Micrel is a high-current, low dropout linear regulator delivering a fixed 1.8V output. Capable of sourcing up to 1.5A, it is designed for powering demanding digital loads such as FPGAs and processors. Housed in a thermally efficient 10-MLF® package, this LDO provides a compact and reliable power solution for high-performance systems.

  • High Output Current: Supports up to 1.5A, making it suitable for powering core logic of FPGAs, DSPs, and processors.
  • Low Dropout Voltage: A 0.5V dropout at 1.5A allows for efficient operation with a modest input-to-output voltage headroom.
  • Excellent Thermal Performance: The 10-MLF® package is designed to dissipate heat effectively, ensuring stable operation under full load.
  • Fixed 1.8V Output: Simplifies design by eliminating the need for external resistor dividers.

High-Current FPGA Core Supply

Deliver a stable 1.8V core voltage to FPGAs and ASICs requiring up to 1.5A, ensuring reliable logic operation.

DSP and Processor Power

Power high-performance DSPs and applications processors that demand low-voltage, high-current rails with minimal voltage droop.

Server and Networking Equipment

Provide clean, regulated power for memory and logic circuits in networking gear where efficiency and thermal performance are critical.

Industrial Control Systems

Use in PLCs and industrial sensors to generate a robust 1.8V rail from a higher intermediate bus voltage.

Point-of-Load Regulation

Employ as a local regulator near a high-current load to improve transient response and reduce noise coupling from the main power bus.

Automotive Infotainment

Power the 1.8V logic rail in infotainment systems, benefiting from the MLF package's thermal dissipation capabilities.

Q: What is the output voltage of the MIC69151-1.8YML?
A: This LDO provides a fixed output voltage of 1.8V.
Q: What is the maximum output current?
A: It can deliver a continuous output current of up to 1.5A.
Q: What is the dropout voltage?
A: The dropout voltage is 0.5V at a full load of 1.5A.
Q: What is the quiescent current?
A: The quiescent current is 20 mA, which is higher than typical low-power LDOs but suitable for high-current applications.
Q: What is the input voltage range?
A: The input voltage range is not specified in the provided data; consult the official datasheet.
Q: What package is available?
A: It is offered in a 10-MLF® (3x3) package, which provides good thermal performance for high current.
Base Product Number : MIC69151-1.8
1.5A 1.8V 10-MLF High Current LDO Linear Regulator Low Dropout Micrel
