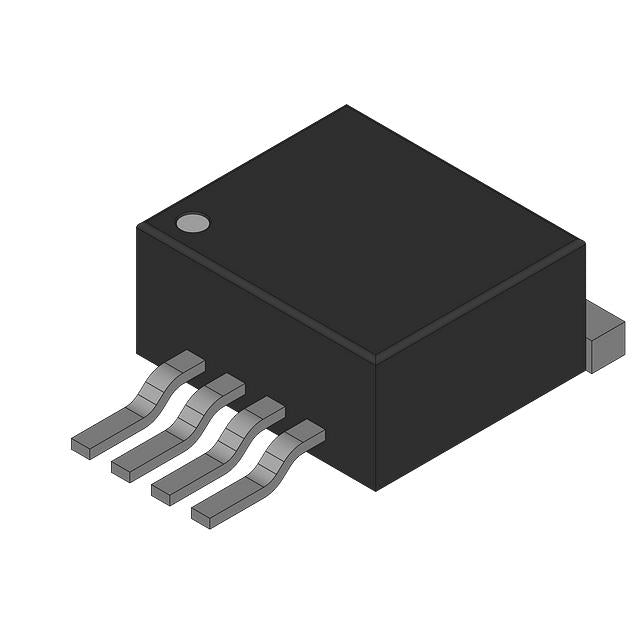

Microchip Technology MIC69301-1.2WR
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.36 | $13.36 |
| 15+ | $3.07 | $46.05 |
| 25+ | $3.01 | $75.25 |
| 50+ | $2.84 | $142.00 |
| 100+ | $2.51 | $251.00 |
| N+ | $0.50 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Microchip Technology |
| Product Series | |
| Packaging | Bulk | |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 5.5V |
| Voltage - Output (Min/Fixed) | 1.2V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.5V @ 3A |
| Current - Output | 3A |
| Current - Quiescent (Iq) | 5 mA |
| Current - Supply (Max) | 75 mA |
| PSRR | - |
| Control Features | Enable, Error Flag |
| Protection Features | Over Current, Over Temperature |
| Operating Temperature | -40°C ~ 125°C |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | SPAK-5 (5 Leads + Tab) |
| Supplier Device Package | S-PAK-5 |
| ROHS |  |
The MIC69301-1.2WR is a fixed 1.2V low-dropout regulator from Microchip Technology, delivering up to 3A with a dropout voltage of only 0.5V. With a quiescent current of 5mA, it offers efficient high-current regulation for demanding applications. The S-PAK-5 package provides robust thermal performance for continuous operation.
- High Current Capability: 3A output supports the most demanding digital loads.
- Low Dropout: 0.5V dropout at 3A maximizes efficiency.
- Stable Output: Maintains precise 1.2V under varying load conditions.
- Robust Package: S-PAK-5 ensures excellent heat dissipation.
High-Performance FPGA Cores
Delivers 3A at 1.2V for modern FPGA core supplies, handling high transient currents with low dropout.
Server and Data Center
Provides stable 1.2V rail for processors and memory, with high current capacity for multi-core systems.
Graphics Processing Units
Powers GPU core voltages, ensuring stable operation during intensive rendering workloads.
Telecom Line Cards
High current output supports multiple DSPs and ASICs in base station equipment.
Industrial Computing
Reliable 1.2V supply for embedded computers in harsh industrial environments.
Power Distribution
Used as a point-of-load regulator for 1.2V rails in complex power systems.
- Q: What is the output voltage of the MIC69301-1.2WR?
- A: It provides a fixed output voltage of 1.2V.
- Q: What is the maximum output current?
- A: The maximum output current is 3A.
- Q: What is the input voltage range?
- A: The input voltage range is not specified in the provided data; refer to the datasheet.
- Q: What is the dropout voltage?
- A: The dropout voltage is 0.5V at 3A load.
- Q: What is the quiescent current?
- A: The quiescent current is 5mA.
- Q: What package is available?
- A: It is available in the S-PAK-5 package.
