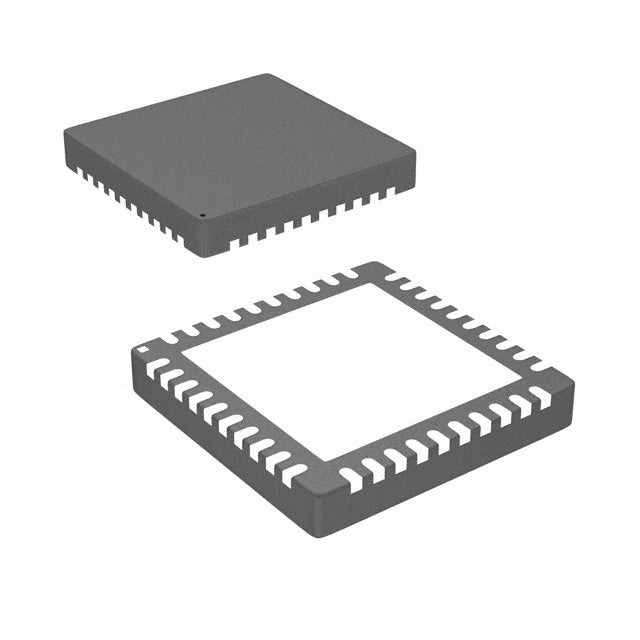

NXP USA Inc. MK20DN64VFM5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $14.23 | $14.23 |
| 15+ | $3.28 | $49.20 |
| 25+ | $3.20 | $80.00 |
| 50+ | $3.03 | $151.50 |
| 100+ | $2.67 | $267.00 |
| N+ | $0.53 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K20 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 50MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 20 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 6x16b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 32-QFN-EP (5x5) |
| Package / Case | 32-VFQFN Exposed Pad |
| ROHS |  |
The MK20DN64VFM5 from NXP is a 32-bit MCU built on the ARM Cortex-M4 core. It delivers 50MHz performance with 64KB flash and 16KB RAM. The device operates from 1.71V to 3.6V and includes DMA, I2S, LVD, POR, PWM, and WDT peripherals. Housed in a 32-VFQFN package, it supports -40°C to 105°C operation, making it suitable for industrial and automotive applications.
- High-efficiency Cortex-M4 core: 50MHz with DSP instructions for faster math processing.
- Low-voltage operation: 1.71V minimum enables battery-powered designs.
- Integrated DMA: Reduces CPU load for data streaming.
- Compact 32-VFQFN: Saves PCB space in space-constrained designs.
- Wide temperature range: -40°C to 105°C for harsh environments.
Industrial Control
The 50 MHz Cortex-M4 with DMA enables efficient real-time control loops for motor control and process automation.
Portable Medical Devices
Low 1.71V operation and multiple low-voltage detectors ensure reliable battery-powered monitoring equipment.
IoT Sensor Nodes
I2S interface supports digital audio sensors, while PWM and WDT provide robust peripheral management.
Automotive Body Electronics
Wide temperature range and POR/LVD features make it suitable for in-vehicle lighting and switch control.
Consumer Appliances
Compact 32-VFQFN package and 64KB flash fit smart home controllers with touch interfaces.
Data Acquisition Systems
DMA offloads ADC data transfer, maintaining throughput at 50MHz without CPU bottleneck.
- Q: What is the core processor of the MK20DN64VFM5?
- A: It uses an ARM Cortex-M4 core running at up to 50 MHz.
- Q: What is the operating voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It has 64KB flash and 16KB RAM.
- Q: What package is available?
- A: It comes in a 32-VFQFN exposed pad package.
- Q: What temperature range does it support?
- A: It is rated for -40°C to 105°C.
