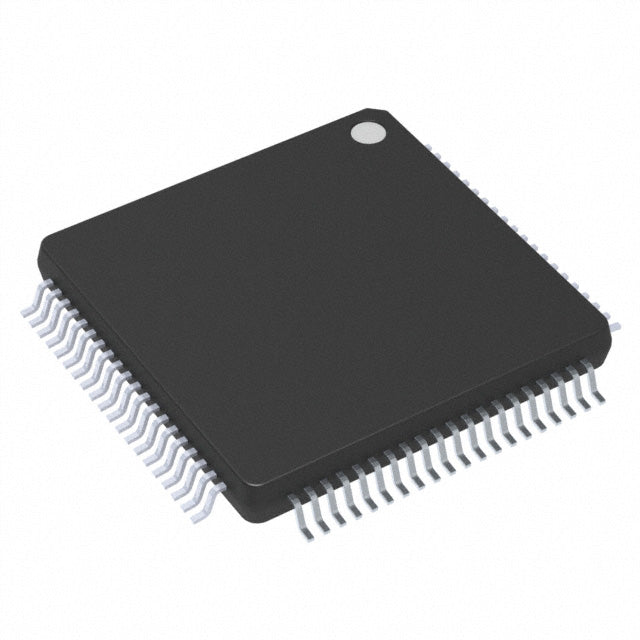

NXP USA Inc. MK20DX64VLK7
Regular price
$8.88
Regular price
$9.35
Sale price
$8.88
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.88 | $8.88 |
| 15+ | $8.60 | $129.00 |
| 25+ | $8.42 | $210.50 |
| 50+ | $7.95 | $397.50 |
| 100+ | $7.01 | $701.00 |
| N+ | $1.40 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K20 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 52 |
| Program Memory Size | 64KB (64K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | 2K x 8 |
| RAM Size | 16K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 27x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 80-FQFP (12x12) |
| Package / Case | 80-LQFP |
| ROHS |  |
The NXP MK20DX64VLK7 is a 32-bit ARM Cortex-M4 MCU running at 72MHz. It offers 64KB flash and 16K RAM, with a supply range of 1.71V to 3.6V. Its peripherals include DMA, I2S, LVD, and PWM, making it ideal for audio, automotive, and industrial applications.
- Cortex-M4 core with DSP instructions accelerates math-heavy tasks.
- Wide temperature range (-40°C to 105°C) suits harsh environments.
- I2S interface simplifies audio system design.
- Low voltage operation (1.71V) reduces power consumption.
Audio Processing Systems
I2S interface and Cortex-M4 DSP instructions enable real-time audio effects.
Automotive Body Electronics
105°C rating and LVD make it suitable for engine bay modules.
Industrial IoT Gateways
DMA and PWM handle sensor fusion and actuator control in smart factories.
Portable Instrumentation
Low voltage (1.71V) and 72MHz speed balance power and performance.
Robotics
Multiple timers and PWM channels coordinate servo motors with precision.
Smart Home Hubs
64KB flash stores protocol stacks for Zigbee and Bluetooth mesh.
- Q: What is the core processor of MK20DX64VLK7?
- A: It uses an ARM Cortex-M4 core running at 72MHz.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C.
- Q: How much RAM is included?
- A: It has 16K x 8 of SRAM.
- Q: Does it support I2S?
- A: Yes, it includes I2S for audio applications.
Base Product Number ：
MK20DX64VLK7
