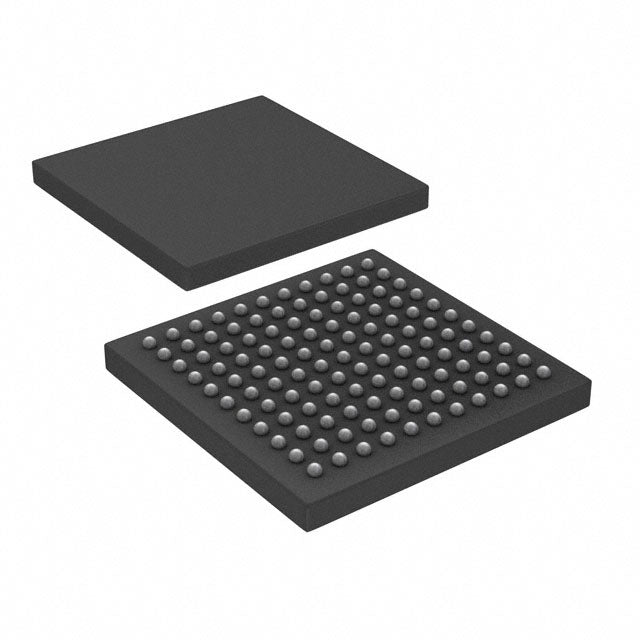

NXP USA Inc. MK21DN512AVMC5
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.16 | $12.16 |
| 15+ | $11.78 | $176.70 |
| 25+ | $11.52 | $288.00 |
| 50+ | $10.88 | $544.00 |
| 100+ | $9.60 | $960.00 |
| N+ | $1.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K20 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 50MHz |
| Connectivity | I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 64 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 20x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 121-MAPBGA (8x8) |
| Package / Case | 121-LFBGA |
| ROHS |  |
The MK21DN512AVMC5 is a 32-bit MCU from NXP's Kinetis K2x family, featuring an ARM Cortex-M4 core at 50MHz. It provides 512KB flash and 64KB RAM in a 121-LFBGA package. With a wide voltage range of 1.71V to 3.6V and rich peripherals including DMA, I2S, and PWM, it is designed for USB and industrial applications.
- Large flash: 512KB storage for complex firmware.
- USB support: Integrated USB controller simplifies connectivity.
- Compact BGA: 121-LFBGA saves board space.
- Low power: 1.71V operation reduces energy consumption.
- Reliable: LVD and POR ensure safe operation.
USB-Enabled Peripherals
The K21 series supports USB connectivity, making it suitable for PC peripherals and data loggers.
Industrial Sensors
With DMA and I2S, it processes high-resolution sensor data for condition monitoring.
Portable Instrumentation
Low voltage operation and 64KB RAM enable handheld measurement devices.
Building Automation
PWM and WDT provide reliable control for HVAC and lighting systems.
Medical Wearables
Compact BGA package and low power make it ideal for wearable health monitors.
Communication Modules
I2S and DMA support audio and voice data for wireless communication modules.
- Q: What is the core of MK21DN512AVMC5?
- A: It uses an ARM Cortex-M4 core at 50MHz.
- Q: How much flash and RAM does it have?
- A: It has 512KB flash and 64KB RAM.
- Q: What package is available?
- A: It comes in a 121-LFBGA package.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What temperature range is supported?
- A: It is rated for -40°C to 105°C.
