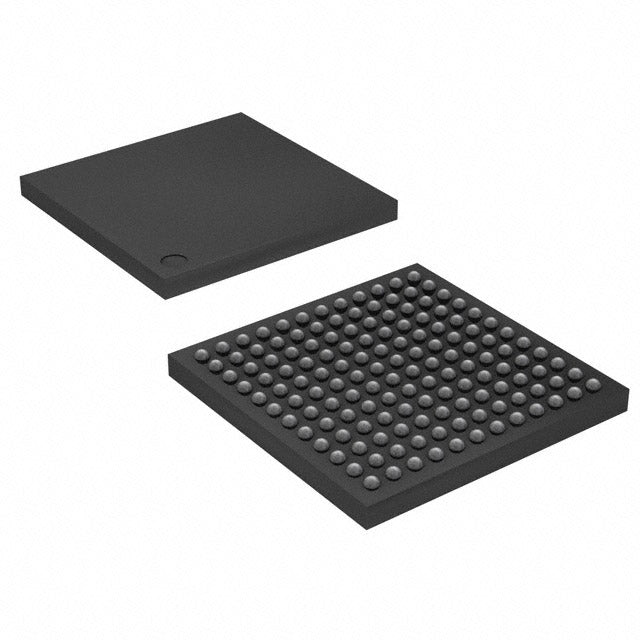

NXP USA Inc. MK21FX512AVMD12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $40.47 | $40.47 |
| 15+ | $9.31 | $139.65 |
| 25+ | $9.11 | $227.75 |
| 50+ | $8.60 | $430.00 |
| 100+ | $7.59 | $759.00 |
| N+ | $1.52 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K20 |
| Packaging | Marketplace | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 95 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 144-MAPBGA (13x13) |
| Package / Case | 144-LBGA |
| ROHS |  |
The MK21FX512AVMD12 is a high-performance 32-bit MCU from NXP's Kinetis K2x family, featuring an ARM Cortex-M4 core at 120MHz. It provides 512KB flash and 128KB RAM in a 144-LBGA package. With a wide voltage range of 1.71V to 3.6V and advanced peripherals, it is designed for demanding industrial and automotive applications.
- High performance: 120MHz Cortex-M4 for intensive tasks.
- Large memory: 512KB flash and 128KB RAM for complex apps.
- High pin count: 144-LBGA offers many I/O options.
- Advanced peripherals: DMA, I2S, PWM for versatile designs.
- Wide temperature: -40°C to 105°C for harsh environments.
High-End Industrial HMI
The 120MHz core and 128KB RAM support graphical user interfaces with smooth rendering.
Advanced Motor Control
Multiple PWM channels and DMA enable field-oriented control for servo drives.
Networking Equipment
Large memory and high speed handle protocol stacks for industrial Ethernet.
Medical Imaging
I2S and DMA process ultrasound and imaging data in portable devices.
Automotive Infotainment
High performance supports audio processing and display control in vehicle dashboards.
Robotics
Rich peripherals and fast execution enable complex motion planning and sensor fusion.
- Q: What is the core of MK21FX512AVMD12?
- A: It uses an ARM Cortex-M4 core at 120MHz.
- Q: How much flash and RAM does it have?
- A: It has 512KB flash and 128KB RAM.
- Q: What package is available?
- A: It comes in a 144-LBGA package.
- Q: What is the voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: What temperature range?
- A: It is rated for -40°C to 105°C.
