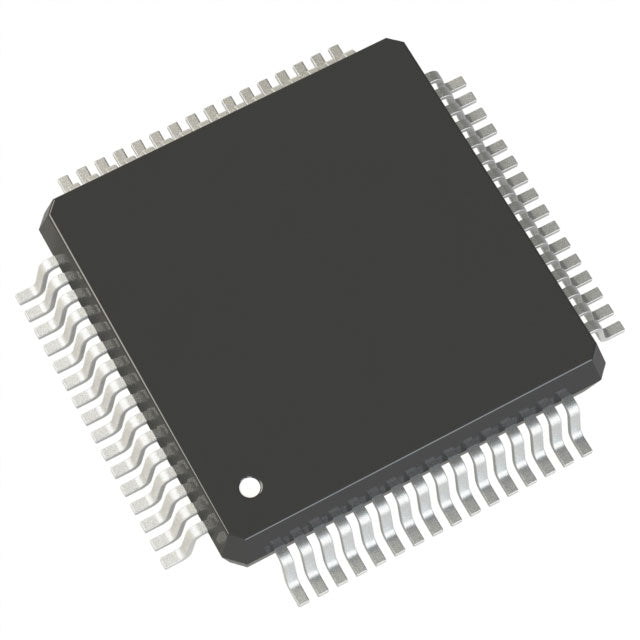

NXP USA Inc. MK22FX512AVLH12
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $12.18 | $12.18 |
| 15+ | $11.79 | $176.85 |
| 25+ | $11.54 | $288.50 |
| 50+ | $10.90 | $545.00 |
| 100+ | $9.62 | $962.00 |
| N+ | $1.92 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K20 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 120MHz |
| Connectivity | CANbus, EBI/EMI, I2C, IrDA, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 40 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 22x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 64-LQFP (10x10) |
| Package / Case | 64-LQFP |
| ROHS |  |
The NXP MK22FX512AVLH12 is a high-performance 32-bit MCU built on the ARM Cortex-M4 core. It delivers 120MHz processing speed with 512KB flash and 64KB RAM, supporting complex applications in industrial and IoT domains. Its wide voltage range and rich peripheral set make it a versatile choice for embedded designers.
- High Efficiency: 120MHz Cortex-M4 with DSP instructions accelerates math-heavy tasks.
- Reliable Operation: LVD and POR protect against voltage fluctuations.
- Flexible I/O: DMA, PWM, and I2S support diverse peripheral connections.
- Extended Temperature: -40°C to 105°C suits harsh environments.
Industrial Control
With a 120MHz Cortex-M4 core and 512KB flash, the MK22FX512AVLH12 handles complex control loops and real-time processing for PLCs and motor control.
IoT Edge Nodes
Low power modes and a 1.71V minimum supply enable battery-powered sensor nodes that require local intelligence and periodic wireless communication.
Medical Monitoring Devices
The -40°C to 105°C range and DMA support allow reliable data acquisition from analog sensors in portable medical equipment.
Automotive Body Electronics
Robust LVD and POR features ensure safe operation in automotive environments, supporting body control modules and lighting systems.
Consumer Appliances
Integrated PWM and I2S interfaces simplify driving motors and audio outputs in smart home appliances, reducing BOM cost.
Building Automation
Multiple communication peripherals and 64-pin LQFP package make it ideal for HVAC controllers and smart lighting gateways.
- Q: What is the maximum operating frequency of the MK22FX512AVLH12?
- A: The MK22FX512AVLH12 operates at up to 120 MHz.
- Q: What is the supply voltage range?
- A: It operates from 1.71V to 3.6V.
- Q: How much flash and RAM does it have?
- A: It features 512KB flash and 64KB RAM.
- Q: What package is available?
- A: It comes in a 64-LQFP package.
- Q: What is the operating temperature range?
- A: It is rated for -40°C to 105°C.
