NXP USA Inc. MK60DN256VMC10
Regular price
$13.54
Regular price
$14.25
Sale price
$13.54
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $13.54 | $13.54 |
| 15+ | $13.11 | $196.65 |
| 25+ | $12.83 | $320.75 |
| 50+ | $12.11 | $605.50 |
| 100+ | $10.69 | $1,069.00 |
| N+ | $2.14 | Price Inquiry |
Shipping calculated at checkout.
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis K60 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M4 |
| Core Size | 32-Bit Single-Core |
| Speed | 100MHz |
| Connectivity | CANbus, EBI/EMI, Ethernet, I2C, IrDA, SD, SPI, UART/USART, USB, USB OTG |
| Peripherals | DMA, I2S, LVD, POR, PWM, WDT |
| Number of I/O | 100 |
| Program Memory Size | 256KB (256K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 64K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 42x16b; D/A 2x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |

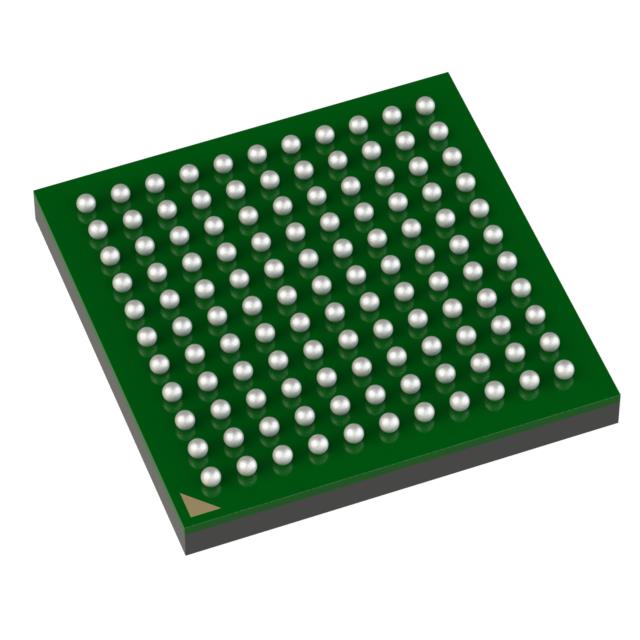

| Supplier Device Package | 121-MAPBGA (8x8) |
| Package / Case | 121-LFBGA |
| ROHS |  |
The NXP MK60DN256VMC10 is a high-performance ARM Cortex-M4 MCU operating at 100MHz. It provides 256KB flash and 64K RAM, with a supply range of 1.71V to 3.6V. Its advanced peripherals include DMA, I2S, LVD, and PWM, making it suitable for demanding industrial and medical applications.
- 100MHz Cortex-M4 delivers high computational throughput.
- Large 64K RAM supports complex real-time applications.
- 121-LFBGA package offers compact footprint with many I/Os.
- Extended temperature range (-40°C to 105°C) for harsh environments.
High-End Motor Control
100MHz processing and PWM enable advanced FOC for industrial servo drives.
Medical Imaging Devices
DMA and 64K RAM handle real-time data from ultrasound transducers.
Networking Equipment
256KB flash stores TCP/IP stacks for industrial Ethernet switches.
Automotive Infotainment
I2S and high speed support audio processing in car head units.
Robotics
Multiple communication interfaces coordinate complex sensor arrays.
Smart Grid Infrastructure
Reliable operation at 105°C suits outdoor power monitoring systems.
- Q: What is the maximum speed of MK60DN256VMC10?
- A: It runs at 100MHz with an ARM Cortex-M4 core.
- Q: How much flash memory does it have?
- A: It includes 256KB of flash memory.
- Q: What package is used?
- A: It comes in a 121-LFBGA package.
- Q: Does it support I2S?
- A: Yes, it has I2S for audio applications.
Base Product Number ：
MK60DN256VMC10
MK60DN256VMC10.pdf
