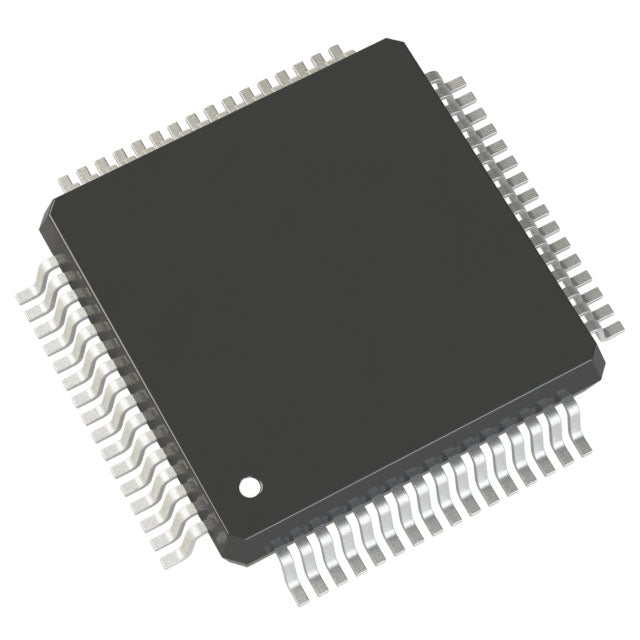

NXP USA Inc. MKL28Z512VLL7
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $8.41 | $8.41 |
| 15+ | $8.14 | $122.10 |
| 25+ | $7.97 | $199.25 |
| 50+ | $7.52 | $376.00 |
| 100+ | $6.64 | $664.00 |
| N+ | $1.33 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis KL2 |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M0+ |
| Core Size | 32-Bit Single-Core |
| Speed | 72MHz |
| Connectivity | I2C, FlexIO, SPI, UART/USART, USB |
| Peripherals | DMA, I2S, PWM, WDT |
| Number of I/O | 82 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 24x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The NXP MKL28Z512VLL7 is a 32-bit ARM Cortex-M0+ microcontroller running at 72MHz. It features 512KB flash and 128K x 8 RAM, with a supply range of 1.71V to 3.6V. The 100-LQFP package includes DMA, I2S, PWM, and WDT, making it a high-performance, low-power option for smart metering, industrial, and portable applications.
- High memory density: 512KB flash and 128KB RAM support complex applications without external memory.
- Ultra-low power core: Cortex-M0+ minimizes energy consumption for battery-powered devices.
- High-speed operation: 72MHz is exceptional for M0+, enabling faster response times.
- Rich peripheral set: DMA and I2S allow efficient data streaming and peripheral management.
Smart Meters
The 512KB flash and 72MHz speed support complex metering algorithms and communication stacks for gas or water meters.
Battery-Powered Sensors
Cortex-M0+ efficiency and 1.71V operation enable years of operation from a coin cell in wireless environmental sensors.
Industrial HMI
With 128K RAM, it can buffer graphical data for simple displays in factory control panels.
Home Automation Gateways
DMA and I2S support multiple protocol interfaces (Zigbee, Bluetooth) while maintaining low latency.
Portable Instrumentation
The 100-LQFP package and 105°C rating make it suitable for handheld multimeters or thermal cameras.
Automotive Body Electronics
While not AEC-Q100, its temperature range and PWM features suit aftermarket lighting or seat control modules.
- Q: What core is used in the MKL28Z512VLL7?
- A: It uses the ARM Cortex-M0+ core, known for its ultra-low power consumption.
- Q: What is the maximum clock speed?
- A: The device operates at up to 72MHz, high for a Cortex-M0+.
- Q: How much flash memory does it have?
- A: It provides 512KB of flash, suitable for large application code.
- Q: What is the package type?
- A: It is available in a 100-LQFP package.
