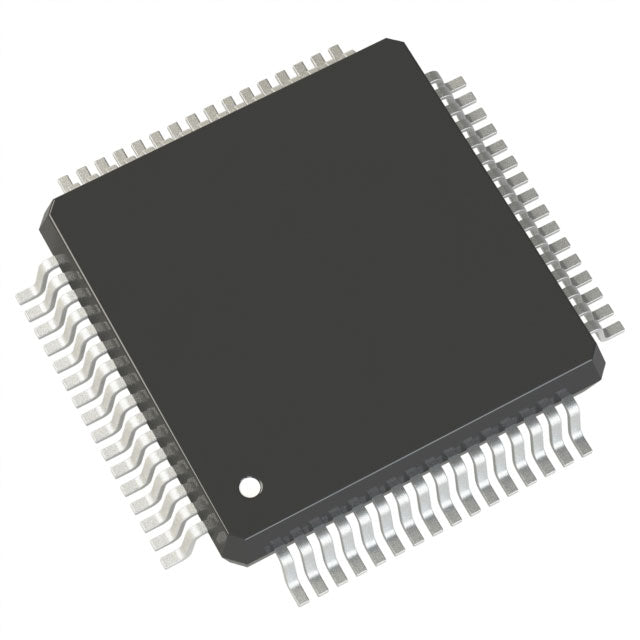

NXP USA Inc. MKV56F512VLL24
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $35.92 | $35.92 |
| 15+ | $8.26 | $123.90 |
| 25+ | $8.08 | $202.00 |
| 50+ | $7.63 | $381.50 |
| 100+ | $6.74 | $674.00 |
| N+ | $1.35 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | NXP USA Inc. |
| Product Series | Kinetis KV |
| Packaging | Tray | Tray |
| Core Processor | ARM® Cortex®-M7 |
| Core Size | 32-Bit Single-Core |
| Speed | 240MHz |
| Connectivity | CANbus, I2C, SPI, UART/USART |
| Peripherals | DMA, LVD, POR, PWM, WDT |
| Number of I/O | 74 |
| Program Memory Size | 512KB (512K x 8) |
| Program Memory Type | FLASH |
| EEPROM Size | - |
| RAM Size | 128K x 8 |
| Voltage - Supply (Vcc/Vdd) | 1.71V ~ 3.6V |
| Data Converters | A/D 4x12b, 1x16b; D/A 1x12b |
| Oscillator Type | Internal |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Supplier Device Package | 100-LQFP (14x14) |
| Package / Case | 100-LQFP |
| ROHS |  |
The NXP MKV56F512VLL24 is a high-performance ARM Cortex-M7 microcontroller in a 100-LQFP package. Operating at 240MHz with 512KB flash and 128KB RAM, it is designed for demanding motor control and power conversion applications. With a supply voltage range of 1.71V to 3.6V, it offers a balance of performance and efficiency.
- Exceptional Performance: 240MHz Cortex-M7 with DSP and FPU for complex algorithms.
- Large Memory: 512KB flash and 128KB RAM for extensive application code.
- Advanced Motor Control: High-resolution PWM and fast ADC for precise control.
- Reliable Operation: Wide voltage range and robust protection features.
High-Performance Motor Control
Leverage the 240MHz Cortex-M7 for advanced motor control algorithms like field-oriented control (FOC) with high PWM resolution.
Industrial Drives
Handle complex multi-axis servo drives with the powerful CPU and DMA for real-time processing.
Power Conversion
Implement high-frequency digital power converters with fast loop control and high-resolution PWM.
Robotics
Use the high-speed processing for sensor fusion and real-time kinematic control in industrial robots.
Automotive Systems
Support advanced automotive control applications requiring high computational power and reliability.
Energy Storage
Manage battery energy storage systems with complex state-of-charge algorithms and communication protocols.
- Q: What is the core architecture?
- A: It uses an ARM Cortex-M7 core running at 240MHz.
- Q: How much flash memory is available?
- A: It has 512KB of program flash.
- Q: What is the supply voltage range?
- A: The operating voltage is 1.71V to 3.6V.
- Q: What is the operating temperature range?
- A: It operates from -40°C to 105°C (TA).
