Monolithic Power Systems Inc. MP163AGSE-5-P
| Quantity | Unit Price | Total Price |
|---|---|---|
| 1 | $0.86 | $0.86 |
| 15+ | $0.83 | $12.45 |
| 25+ | $0.81 | $20.25 |
| 50+ | $0.77 | $38.50 |
| 100+ | $0.68 | $68.00 |
| N+ | $0.14 | Price Inquiry |
Request Quote / Inquiry
| Product attributes | Property Value |
| Manufacturer | Monolithic Power Systems Inc. |
| Product Series | MP |
| Packaging | Tape & Reel (TR) | |
| Output Isolation | Non-Isolated |
| Internal Switch(s) | Yes |
| Voltage - Breakdown | 700V |
| Topology | Boost, Buck, Buck-Boost, Flyback |
| Voltage - Start Up | - |
| Voltage - Supply (Vcc/Vdd) | 5.3V ~ 6.5V |
| Duty Cycle | - |
| Frequency - Switching | - |
| Power (Watts) | - |
| Fault Protection | Current Limiting, Open Loop, Over Load, Over Temperature, Short Circuit, UVLO |
| Control Features | EN, Frequency Control, Soft Start |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 16-SOIC |
| ROHS |  |

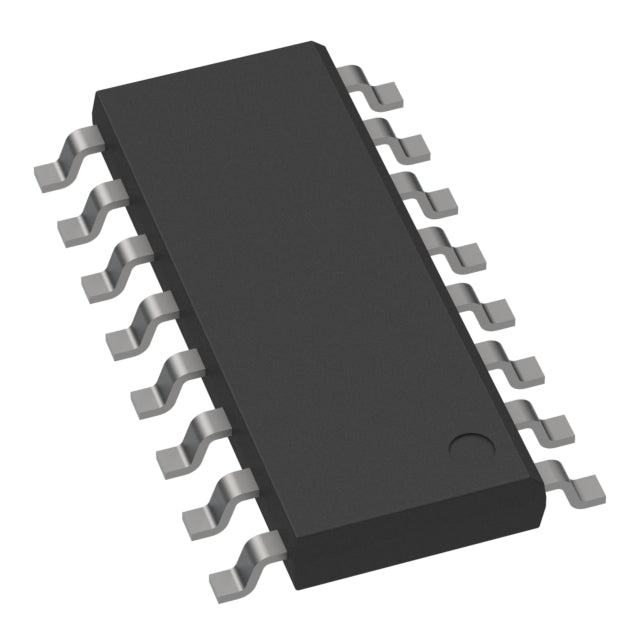

The MP163AGSE-5-P is a non-isolated offline regulator from Monolithic Power Systems featuring an integrated 700V switch. It supports Boost, Buck, Buck-Boost, and Flyback topologies and operates from a 5.3V to 6.5V Vcc supply. Protection includes current limiting, open loop, over load, over temperature, short circuit, and UVLO, complemented by enable, frequency control, and soft-start. Supplied in a 16-SOIC package rated -40°C to 125°C junction.
- Integrated 700V switch reduces external components and design complexity.
- Multi-topology flexibility (Boost, Buck, Buck-Boost, Flyback) for diverse non-isolated designs.
- Robust fault protection: current limiting, over load, over temperature, short circuit, and UVLO.
- Soft-start and frequency control for stable, tunable operation.
- Wide -40°C to 125°C junction range for demanding environments.
Compact Non-Isolated Offline Regulators
The integrated 700V switch and non-isolated design let the MP163AGSE-5-P deliver offline regulation without an isolation transformer, reducing size and cost.
Buck Step-Down Rails
Support for Buck topology enables direct step-down conversion from a rectified mains bus for low-voltage control circuitry.
Buck-Boost and Boost Auxiliary Supplies
Buck-Boost and Boost configurations extend flexibility for rails that need step-up or step-up/down conversion.
Flyback Bias Supplies
Where a flyback arrangement is preferred, the 700V internal switch and soft-start control support a compact bias supply.
Industrial and Appliance Electronics
Comprehensive fault protection and a -40°C to 125°C junction range support dependable operation in industrial and appliance control boards.
- Q: What topologies does the MP163AGSE-5-P support?
- A: Boost, Buck, Buck-Boost, and Flyback, in a non-isolated configuration.
- Q: Is the power switch integrated?
- A: Yes, an internal switch with a 700V breakdown rating is integrated.
- Q: What is the Vcc operating supply range?
- A: 5.3V to 6.5V.
- Q: What fault protections are included?
- A: Current limiting, open loop, over load, over temperature, short circuit, and UVLO.
- Q: What package and temperature range?
- A: 16-SOIC package with -40°C to 125°C junction temperature range.
